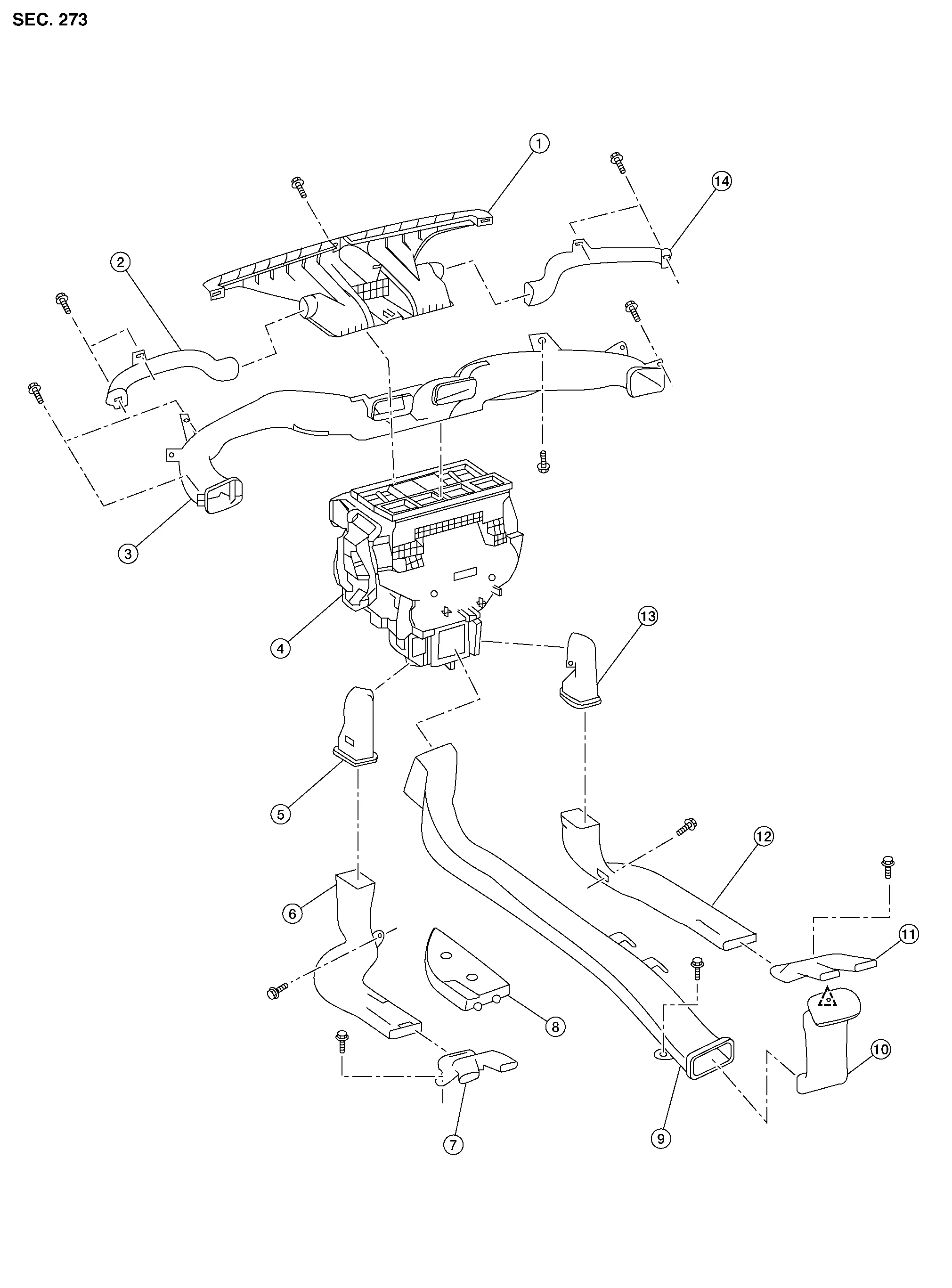

Exploded View

FRONT

1.	Defroster nozzle	2.	Side defroster duct (LH)	3.	Center ventilator duct
4.	Heating and cooling unit	5.	Front floor connecting duct (LH)	6.	Front floor duct (LH)
7.	Front floor duct nozzle (LH)	8.	Spacer	9.	Center floor duct
10.	Rear center ventilator duct	11.	Front floor duct nozzle (RH)	12.	Front floor duct (RH)
13.	Front floor connecting duct (RH)	14.	Side defroster duct (RH)		Clip

Ventilation System :: Removal and Installation

Defroster Nozzle

Removal and Installation REMOVALRemove the side defroster ducts (LH/RH). Refer to Removal and Installation. Remove the screws and defroster nozzle.INSTALLATIONInstallation is in the reverse order of removal...
