Nissan Murano (Z52) 2015-2024 Service Manual / Ventilation, Heater & Air Conditioner / Ventilation System :: Removal and Installation / Ducts and Grilles / Side Ventilator Grille

Removal and Installation

REMOVAL

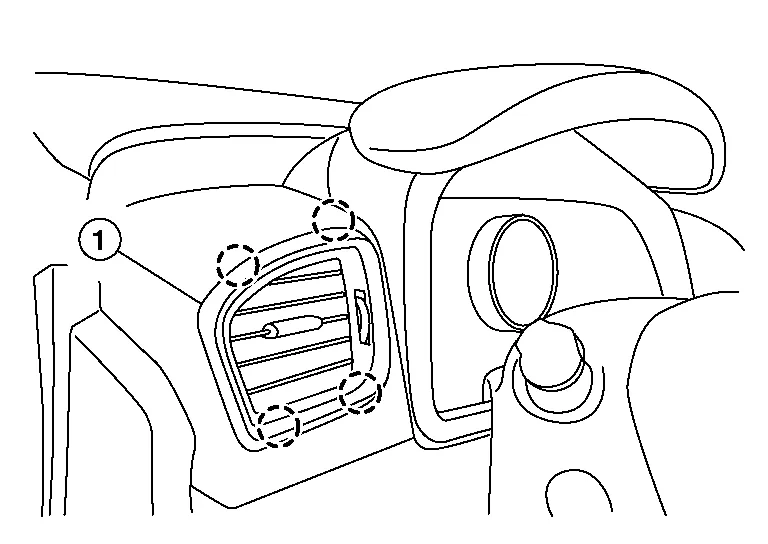

Side ventilator grille (LH)

Release the pawls using a suitable tool and remove side ventilator grille (LH) (1).

: Pawl

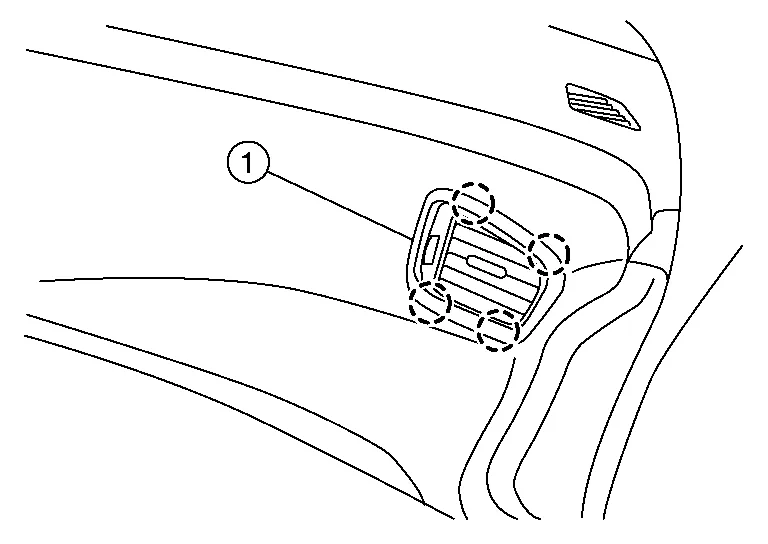

Side ventilator grille (RH)

Release the pawls using a suitable tool and remove side ventilator grille (RH) (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

Center Ventilator Grille

Removal and Installation REMOVALRemove the cluster lid D. Refer to Removal and Installation. Remove the center ventilator screws. Refer to Exploded View...

Side Defroster Grille

Removal and Installation REMOVALRemove the side defroster duct. Refer to Removal and Installation. Remove the side defroster grille screws (A). Remove the side defroster grille...
