Nissan Murano: Ducts and Grilles / Front Floor Duct Nozzle

Nissan Murano (Z52) 2015-2024 Service Manual / Ventilation, Heater & Air Conditioner / Ventilation System :: Removal and Installation / Ducts and Grilles / Front Floor Duct Nozzle

Removal and Installation

REMOVAL

Remove the floor trim. Refer to Removal and Installation.

Remove the screw and the front floor duct nozzle.

INSTALLATION

Installation is in the reverse order of removal.

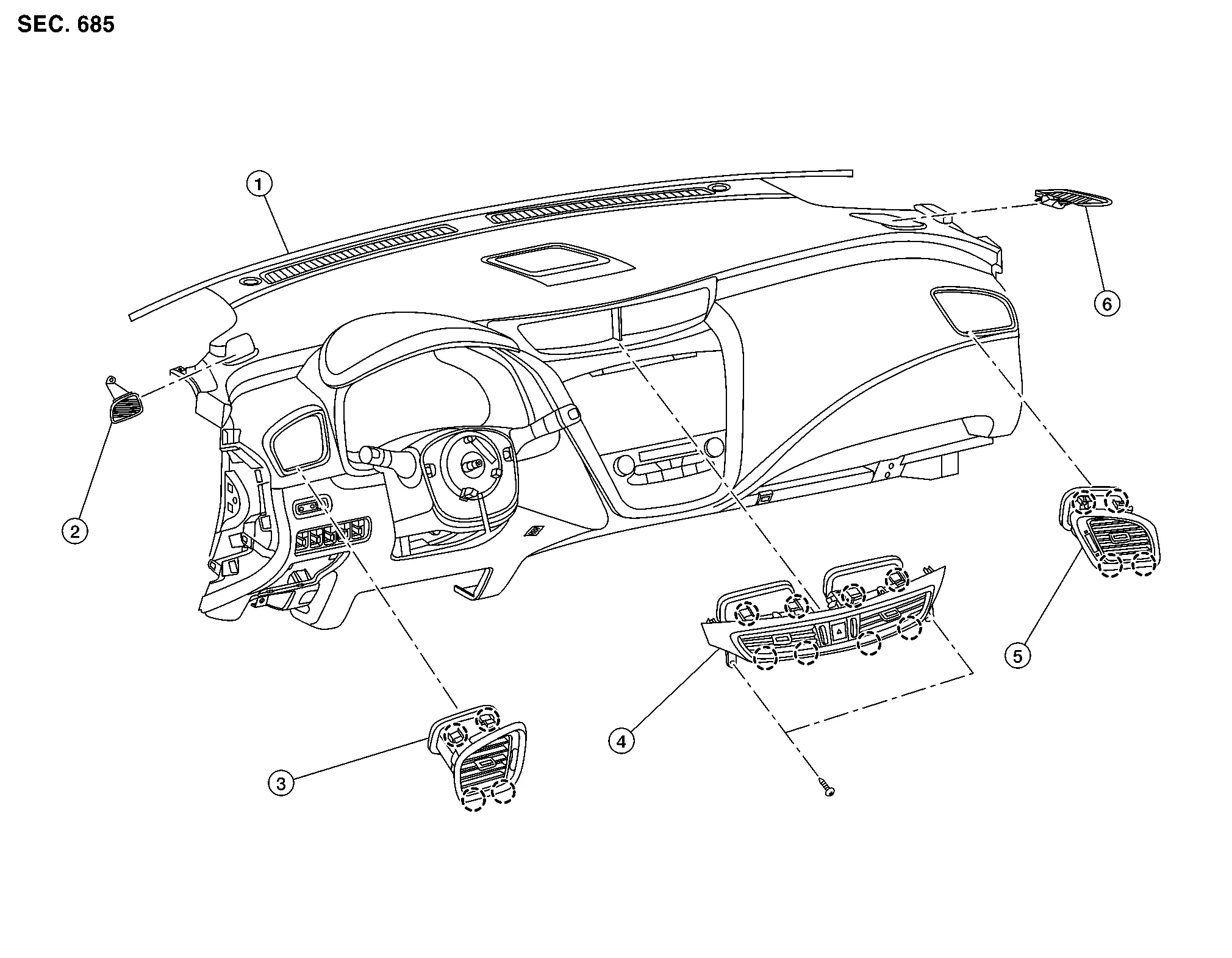

Exploded View

1.	Instrument panel	2.	Side defroster grille (LH)	3.	Side ventilator grille (LH)
4.	Center ventilator grille	5.	Side ventilator grille (RH)	6.	Side defroster grille (RH)
	Pawl

Center Floor Duct

Removal and Installation - Center Floor Duct REMOVALRemove the center console assembly. Refer to Exploded View. Remove the steering member brace (LH). Refer to Exploded View...

Center Ventilator Grille

Removal and Installation REMOVALRemove the cluster lid D. Refer to Removal and Installation. Remove the center ventilator screws. Refer to Exploded View...
