Nissan Murano (Z52) 2015-2024 Service Manual / Ventilation, Heater & Air Conditioner / Ventilation System :: Removal and Installation / Ducts and Grilles / Center Ventilator Grille

Removal and Installation

REMOVAL

Remove the cluster lid D. Refer to Removal and Installation.

Remove the center ventilator screws. Refer to Exploded View.

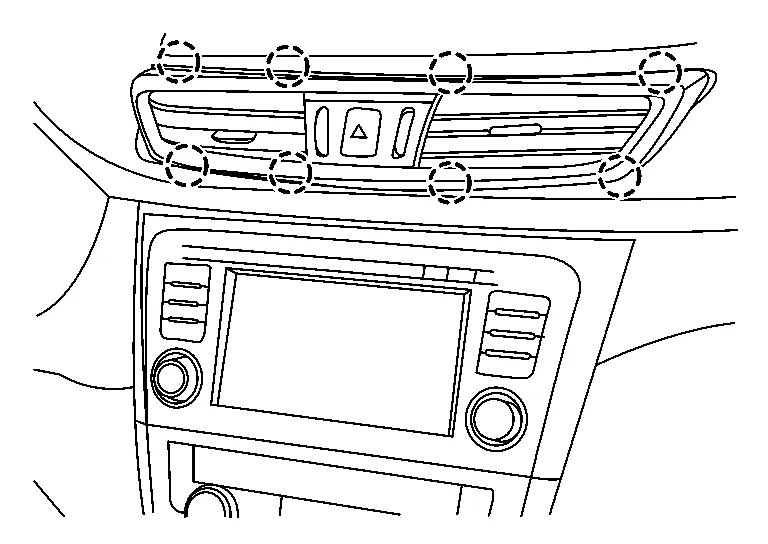

Release the pawls using a suitable tool and remove the center ventilator grille from the instrument panel.

: Pawl

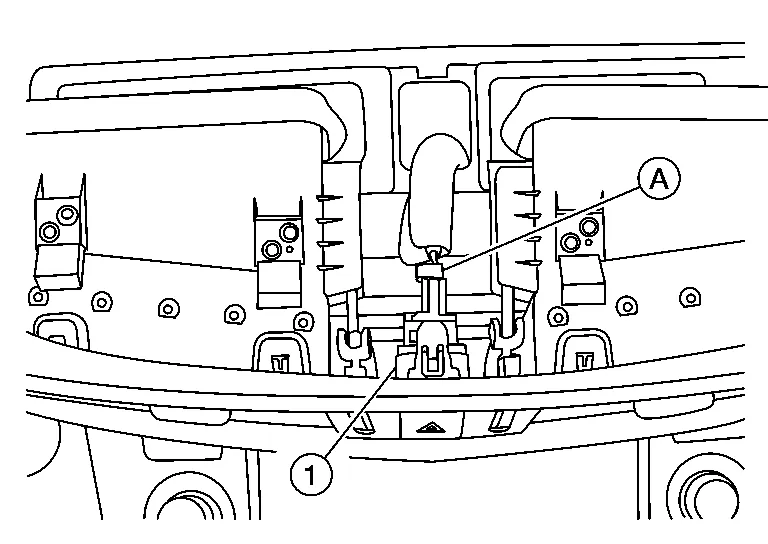

Disconnect the harness connector (A) from hazard switch (1).

INSTALLATION

Installation is in the reverse order of removal.
