Nissan Murano: Headlight and turn signal switch / Headlight control switch

Nissan Murano (Z52) 2015-2024 Owners Manual / Instruments and controls / Headlight and turn signal switch / Headlight control switch

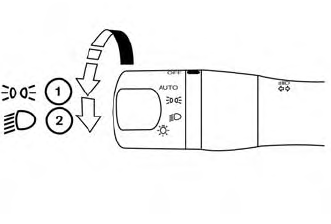

Nissan Murano. Headlight control switch

Type A (if so equipped)

Lighting

Nissan Murano. Headlight control switch Rotate the switch to the position, and the front parking, tail, and license plate lights will come on.

Nissan Murano. Headlight control switch Rotate the switch to the position, and the headlights will come on and all the other lights remain on.

Nissan Murano. Headlight control switch

Type B (if so equipped)

CAUTION

Use the headlights with the engine running to avoid discharging the vehicle battery.

Headlight and turn signal switch

Autolight system

The autolight system allows the headlights to turn on and off automatically. The autolight system can: Turn on the headlights, front parking, tail, license plate and instrument panel lights automatically when it is dark...
