Nissan Murano: Mirrors / Outside mirrors
WARNING
- Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
- Objects viewed in the outside mirror
on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the inside
mirror or glance over your shoulder
to properly judge distances to
other objects.

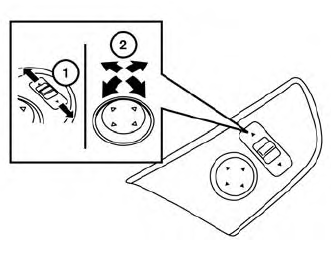

Electric control type

The outside mirror remote control will operate
only when the ignition switch is in the
ACC or ON position.
Move the small switch
to select
the left
or right mirror. Adjust each mirror to the
desired position using the large switch
.
Move the small switch to the center (neutral)
position to prevent accidentally moving
the mirror.

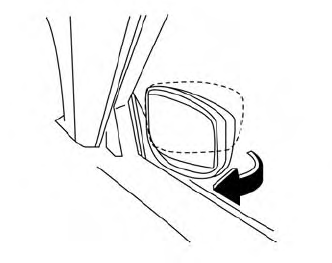

Manual folding outside mirrors

Pull the outside mirror toward the door to
fold it.
Reverse tilt-down feature (if so equipped)
The reverse tilt-down feature will turn both
outside mirror surfaces downward to provide
better rear visibility close to the vehicle
when the mirror control switch is in either
the L or R position.
The mirrors automatically return to their
original position when you shift out of R
(Reverse).
The outside mirror surfaces will return to
their original position when one of the following
has occurred:
- The shift lever is moved to any position
other than R (Reverse).
- The outside mirror control switch is set
to the neutral or center position.
- The ignition switch is placed in the OFF
position.
NOTE:
If the outside mirror control switch is in
the center (neutral) position, mirror surface
will NOT turn downward when the
shift lever is moved to R (Reverse).
For additional information regarding this
feature, refer to “Automatic drive positioner”
in this section.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to
defrost, defog, or de-ice for improved visibility.
For additional information, refer to
“Rear window and outside mirror (if so
equipped) defroster switch” in the “Instruments
and controls” section of this manual.
