Switch Name and Function

No. Switch name Description
1.

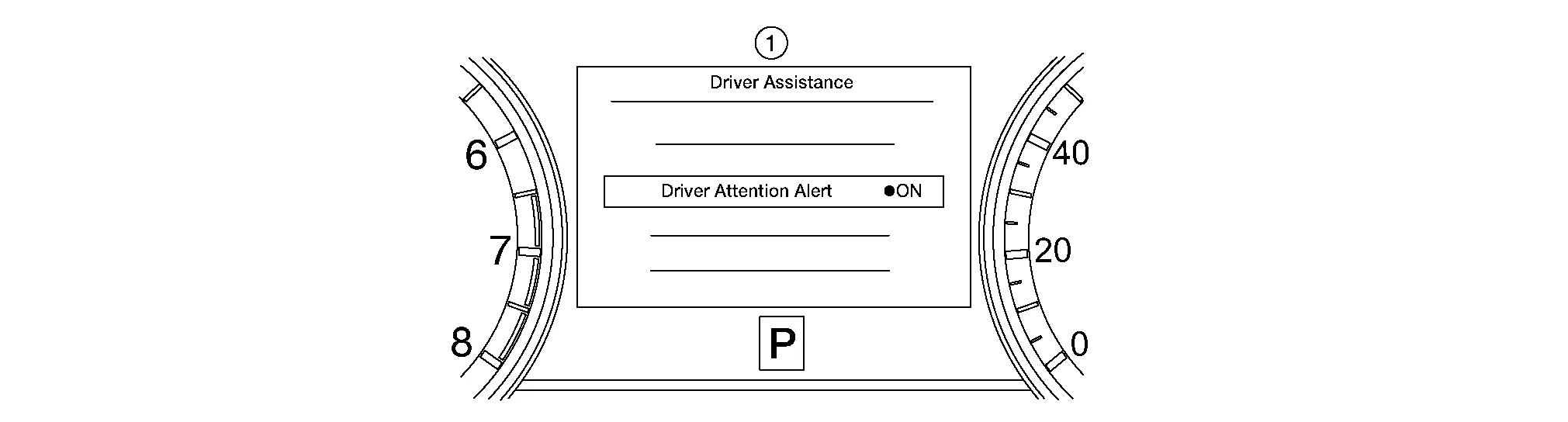

I-DA system setting screen

(Combination meter settings screen)
The setting of I-DA system can be switched between ON and OFF.
