Nissan Murano: Operation / Rab

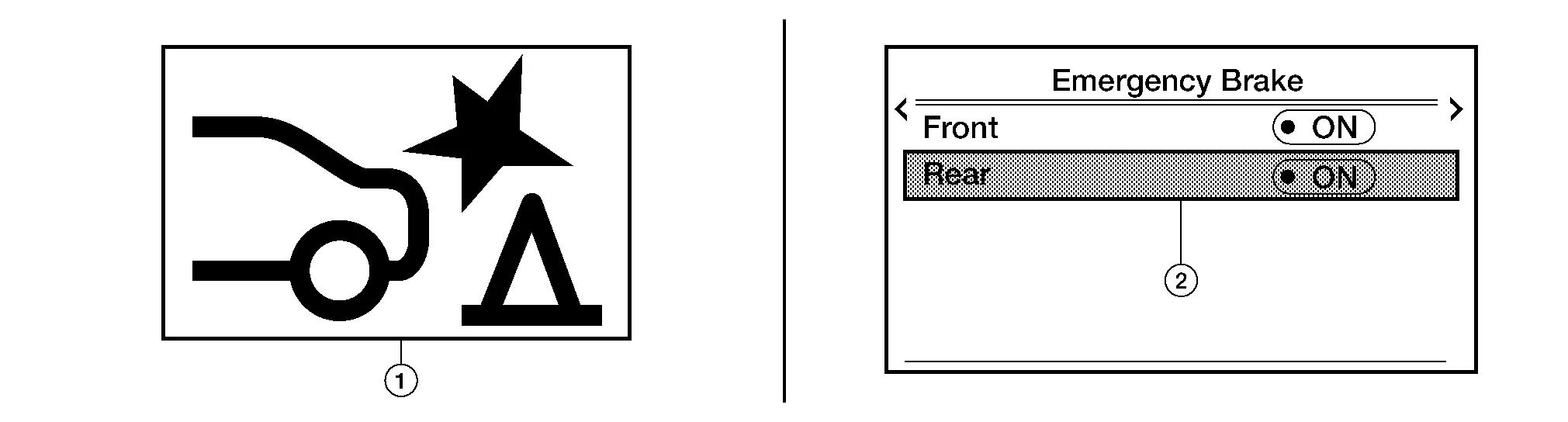

| No. | Switch name | Description |
|---|---|---|
| 1. | RAB system warning light | Illuminates when the RAB system is turned off or a malfunction is detected in the RAB system. |
| 2. | RAB system setting screen (information display) | The setting of the RAB system can be switched between ON and OFF |
Ldw
O..
I-Da
Switch Name and Function
No. Switch name Description
1.
I-DA system setting screen
(Combination meter settings screen)
The setting of I-DA system can be switched between ON and OFF...
