Nissan Murano: Interior :: Removal and Installation / Back Door Trim

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Interior :: Removal and Installation / Back Door Trim

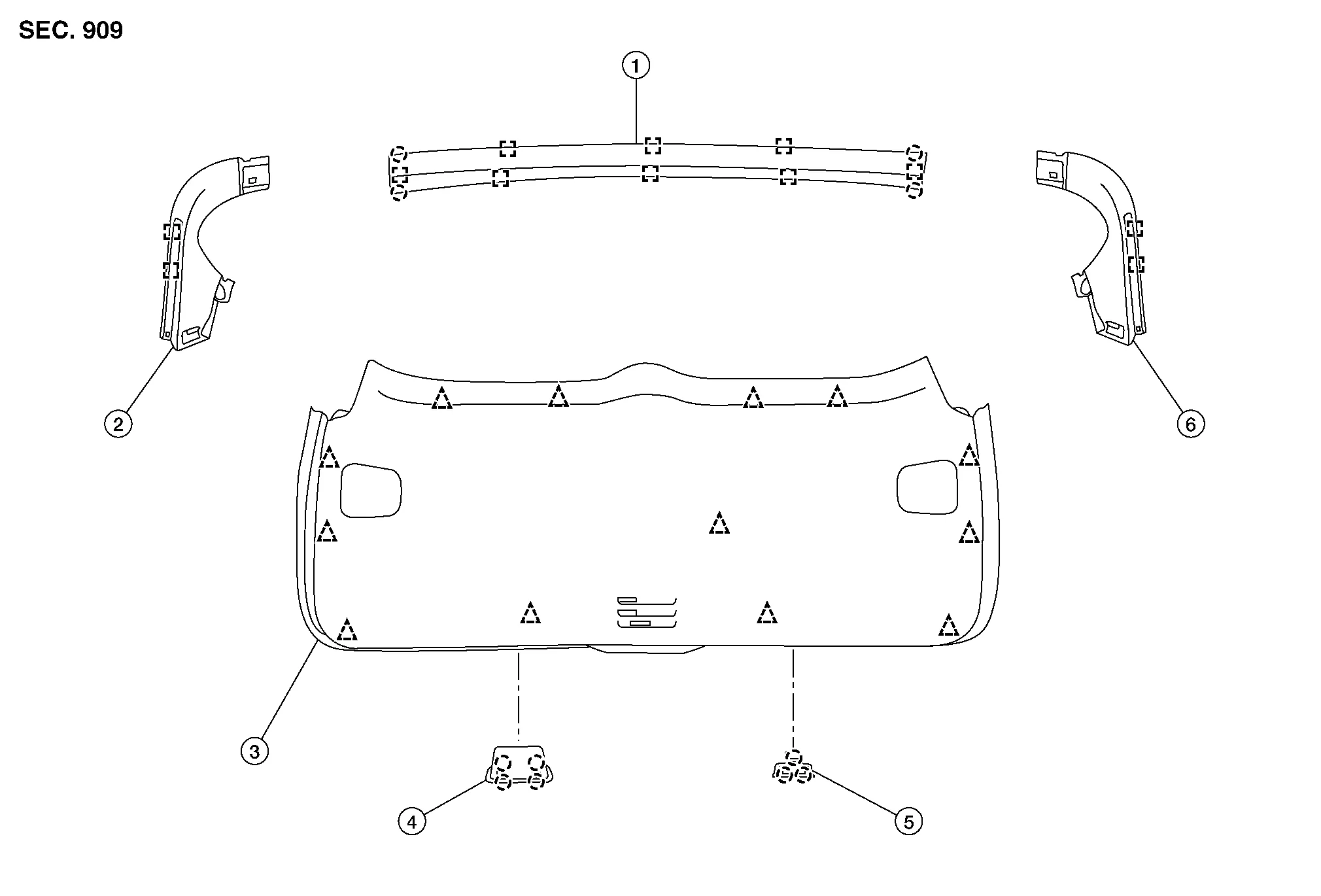

Exploded View

1.	Back door upper finisher	2.	Back door side finisher (RH)	3.	Back door lower finisher
4.	Back door pull handle	5.	Automatic back door close switch (if equipped)	6.	Back door side finisher (LH)
	Pawl		Clip		Metal clip

Back Door Kicking Plate

Removal and Installation REMOVALRemove storage box (LH/RH). Refer to Removal and Installation. Release pawls using a suitable tool and remove back door striker escutcheon...

Back Door Upper Finisher

Removal and Installation REMOVALRelease back door upper finisher (1) upper pawls as shown. : Pawl Release back door upper finisher (1) lower pawls as shown...
