Removal and Installation

REMOVAL

Remove storage box (LH/RH). Refer to Removal and Installation.

Release pawls using a suitable tool and remove back door striker escutcheon.

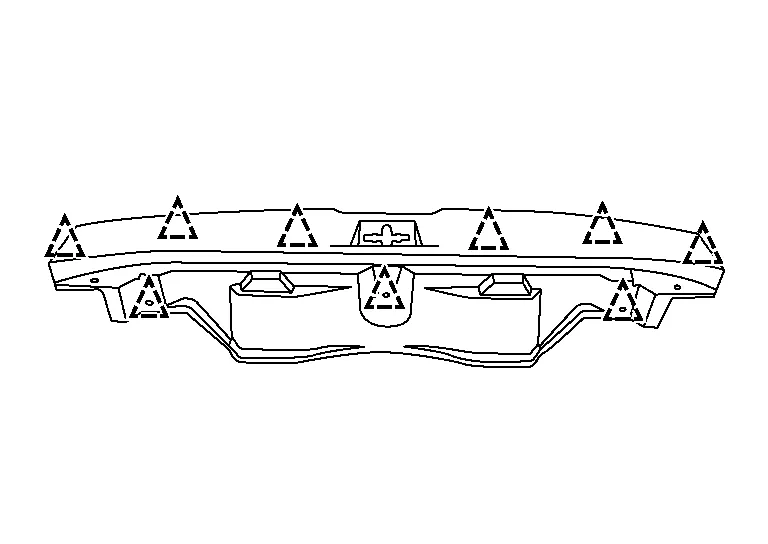

Release back door kicking plate clips and pawls using a suitable tool and remove.

: Clip

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check clips for deformation and damage during installation. Replace with new ones if necessary.

When installing back door kicking plate, check that clips are securely placed in body panel holes.
