Nissan Murano: Back Door Trim / Back Door Lower Finisher

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Interior :: Removal and Installation / Back Door Trim / Back Door Lower Finisher

Removal and Installation

REMOVAL

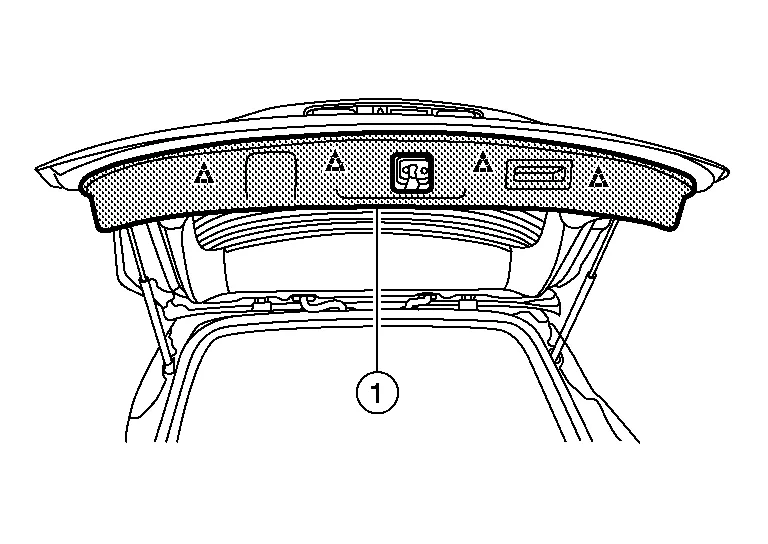

Release clips from back door lower finisher (1) using a suitable tool.

: Clip

Remove back door pull handle. Refer to Exploded View.

Release remaining back door lower finisher clips using a suitable tool.

: Clip

Disconnect the harness connector (if equipped) from the back door lower finisher then remove the back door lower finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check clips for deformation and damage during installation. Replace with new ones if necessary.

When installing back door lower finisher, check that clips are securely placed in body panel holes.
