Nissan Murano: Exterior :: Removal and Installation / Under Cover

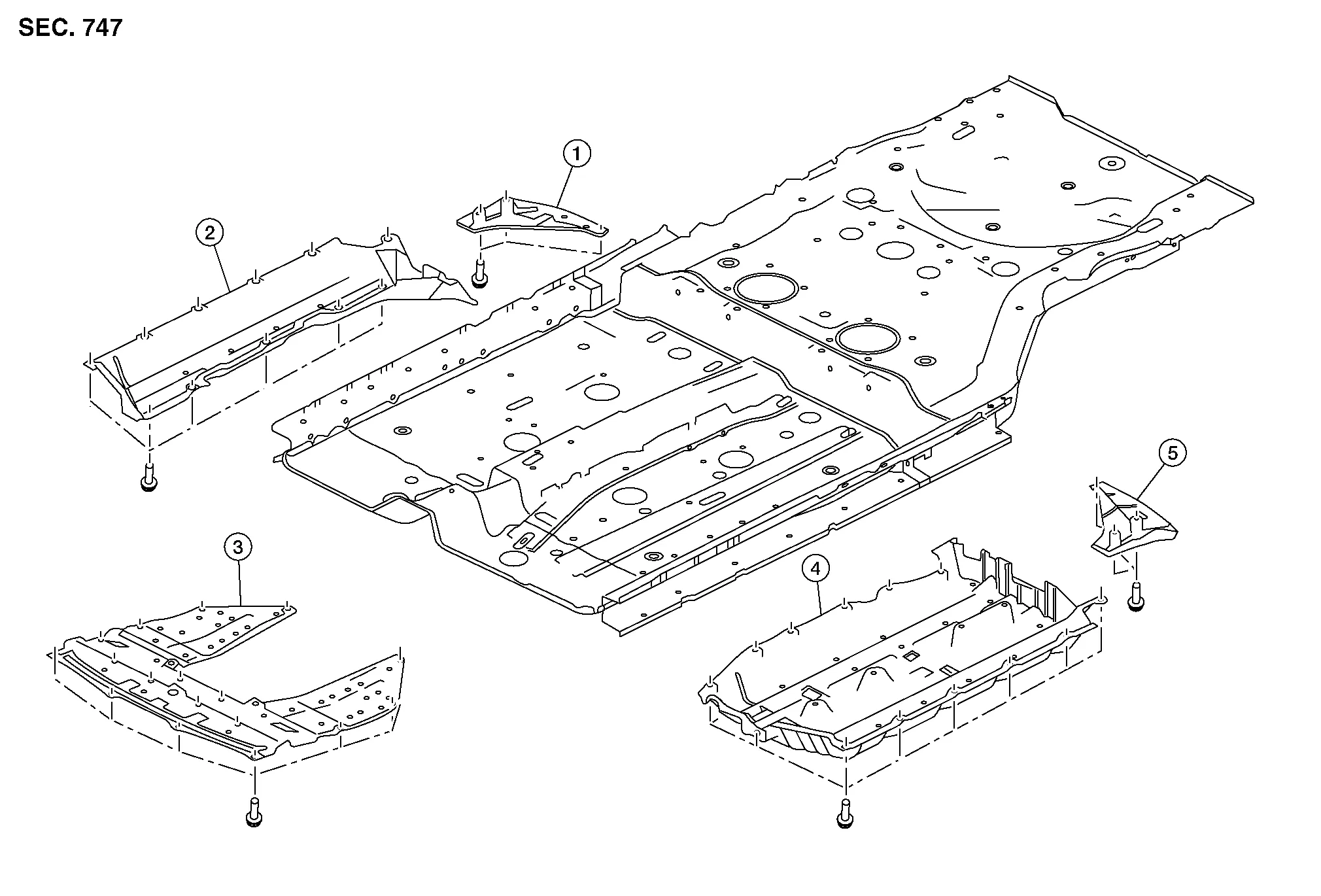

| 1. | Rear under cover (RH) | 2. | Floor under cover (RH) | 3. | Front under cover |
| 4. | Floor under cover (LH) | 5. | Rear under cover (LH) |
Rear Over Fender
Exploded View
1.
Rear wheel house protector
2.
Rear over fender
Clip
Front
Removal and Installation
REMOVALRemove rear over fender screws...
