Nissan Murano: Component Parts / Shift Lock System

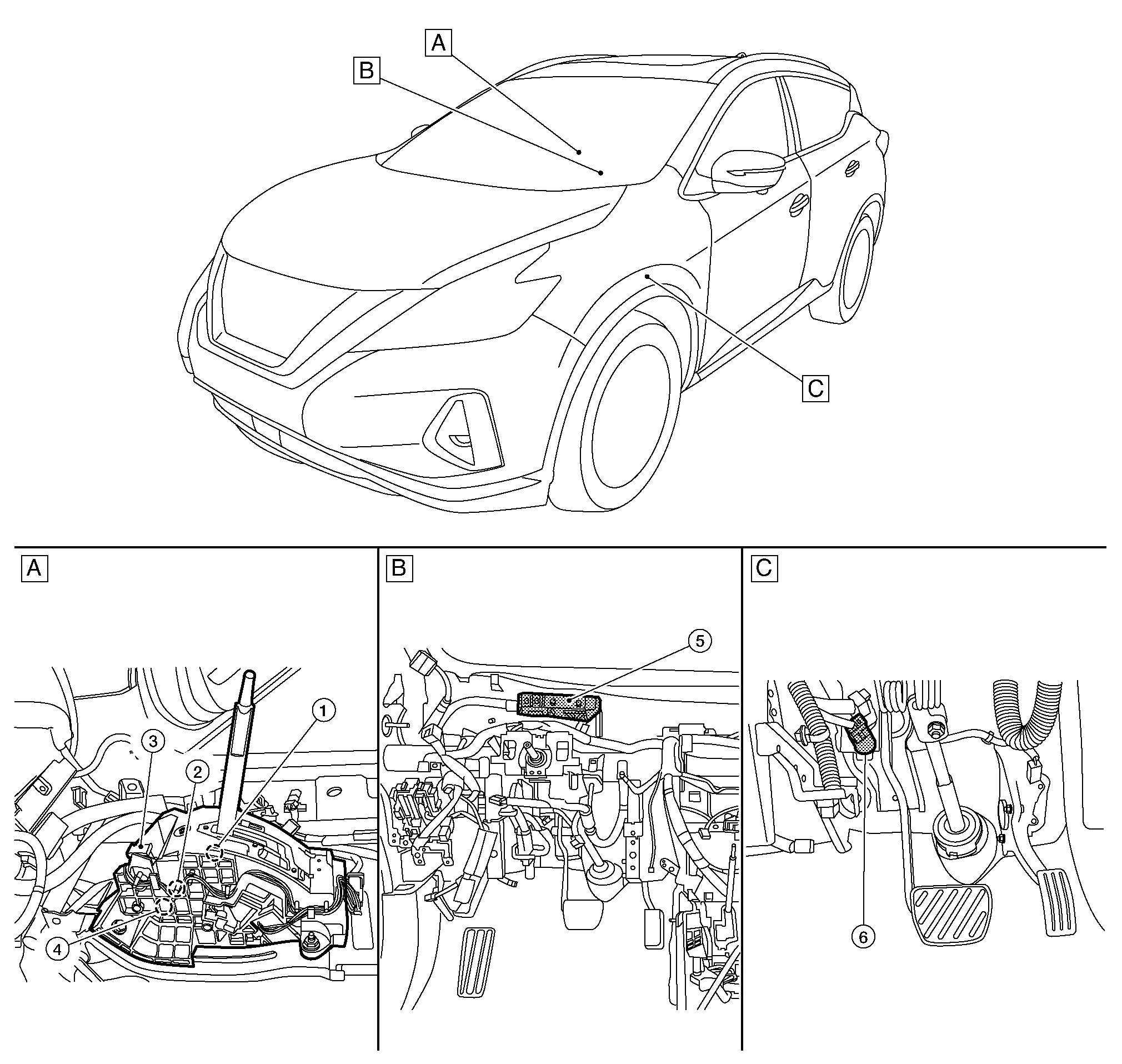

| A. | Between front seats (view with center console removed) | B. | View with instrument panel removed | C. | Brake pedal area |
| No. | Component | Function |
|---|---|---|
| 1. | Detent switch | The detent switch detects that the selector lever is in “P” position. |
| 2. | Shift lock solenoid | The shift lock solenoid operates according to the signal from the BCM and moves the lock lever. |
| 3. | Shift lock release button | Forcibly releases the shift lock when pressed. |
| 4. | Park position switch | This switch closes to provide ground to the solenoid. |
| 5. | BCM (Body Control Module) | When the stop lamp switch signal is received by the BCM, the BCM supplies power to the shift lock solenoid coil. |
| 6. | Stop lamp switch | When the stop lamp switch supplies power to the BCM, the BCM supplies power to the shift lock solenoid. |
Cvt Control System
Component Parts Location
CVT shift selector assembly
Combination meter
Behind of combination meter
Engine room (RH side)
Engine room (LH side)
Transaxle assembly
COMPONENT DESCRIPTION No...
