Nissan Murano: Unit Removal and Installation / Transmission Assembly

Nissan Murano (Z52) 2015-2024 Service Manual / Transmission & Driveline / Transaxle & Transmission :: Cvt: Re0f10j / Unit Removal and Installation / Transmission Assembly

Exploded View

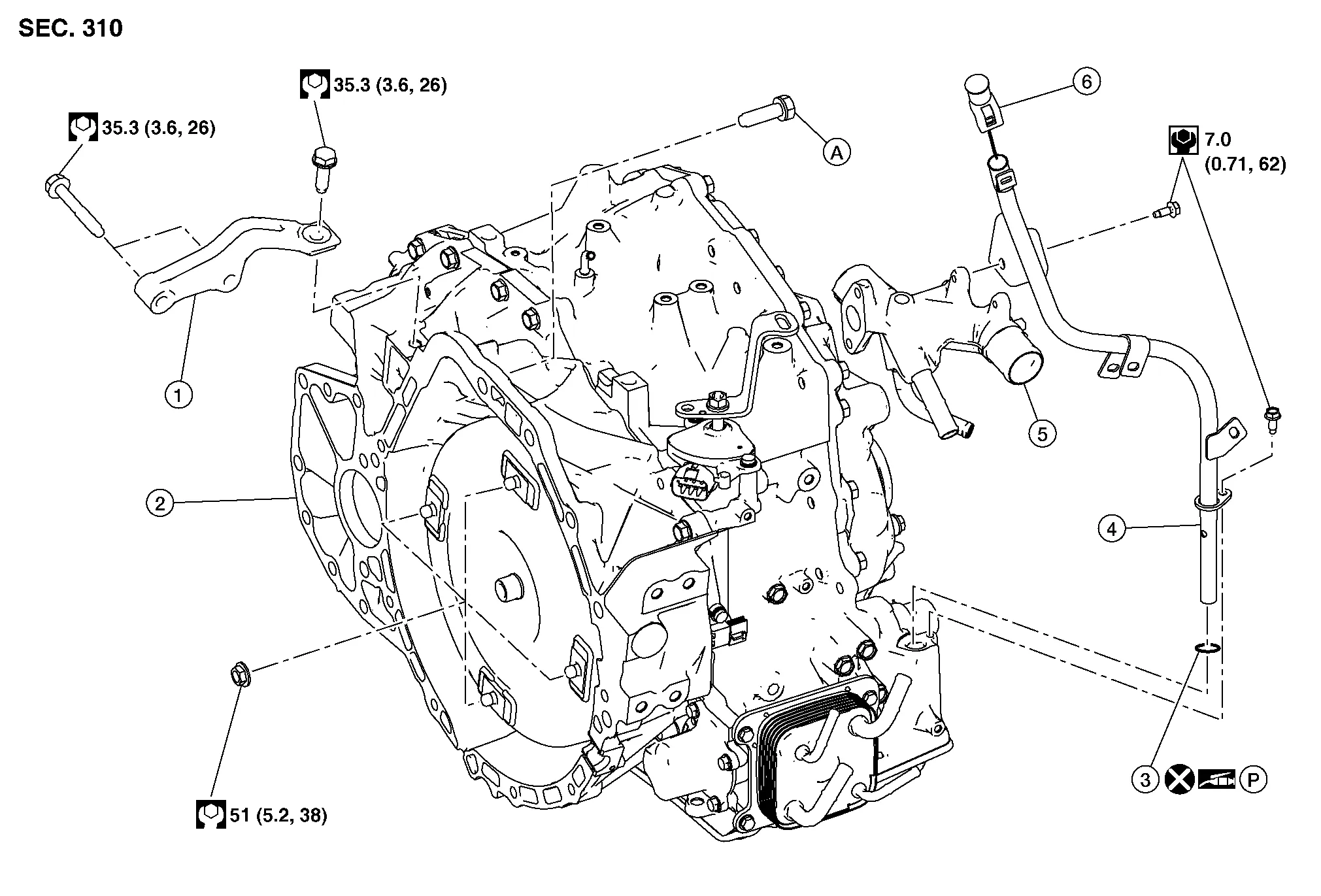

FWD Models

1.	Gusset	2.	Transaxle assembly	3.	O-ring
4.	CVT fluid charging pipe	5.	Water outlet	6.	CVT fluid charging pipe cap
A.	For the tightening torque, refer to Removal and Installation .
	: Apply petroleum jelly

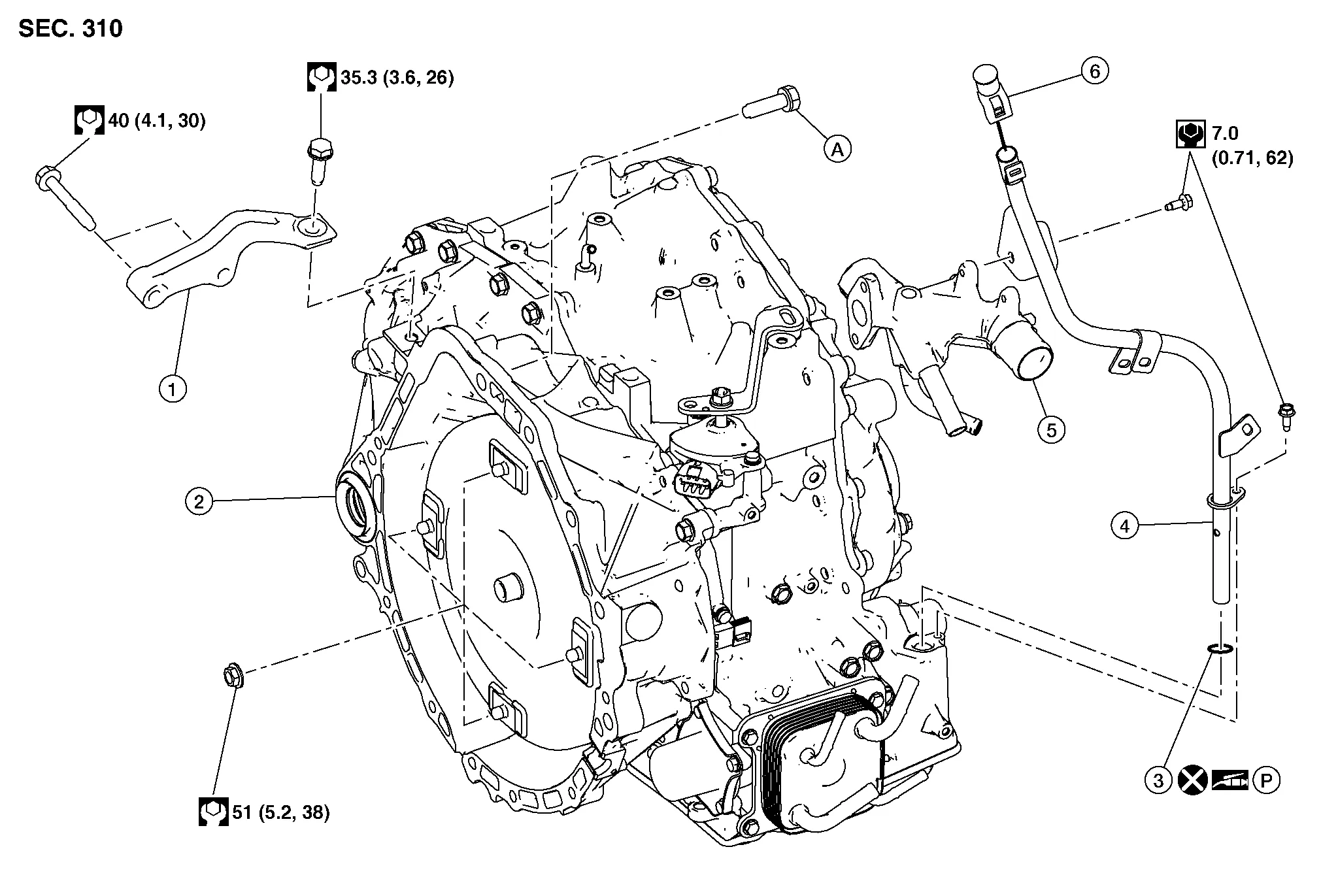

AWD Models

1.	Gusset	2.	Transaxle assembly	3.	O-ring
4.	CVT fluid charging pipe	5.	Water outlet	6.	CVT fluid charging pipe cap
A.	For the tightening torque, refer to Removal and Installation .
	: Apply petroleum jelly

Front Wheel Drive

Removal and Installation - FWD RemovalWARNING: Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure engine coolant escaping from the radiator...
