Nissan Murano: Rear Cross Traffic Alert (RCTA) (if so equipped) / System temporarily unavailable

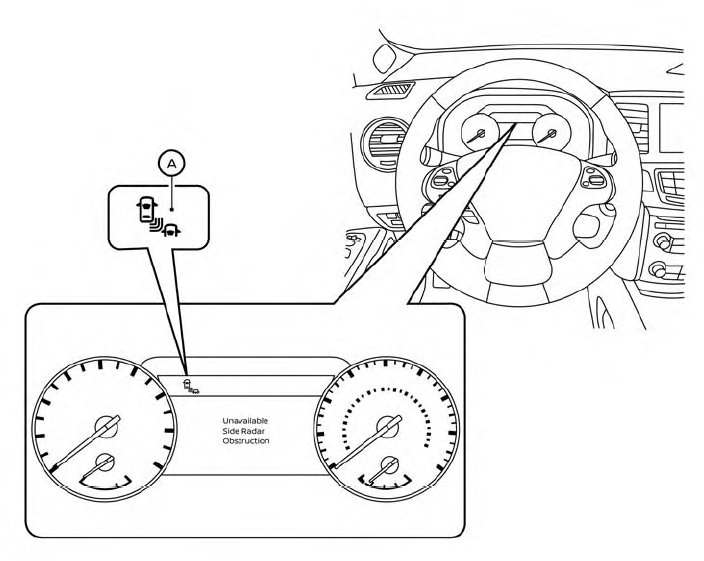

When radar blockage is detected, the system
will be deactivated automatically. The
“Unavailable: Side Radar Obstruction”
warning message will appear and the
BSW/RCTA indicator (white) will blink
in
the vehicle information display.
The systems are not available until the
conditions no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused
by objects such as ice, frost or dirt obstructing
the radar sensors.
NOTE:
If the BSW system stops working, the
RCTA system (if so equipped) will also
stop working.
Action to take
When the above conditions no longer exist,
the system will resume automatically.
Malfunction
When the RCTA system malfunctions, it will
turn off automatically. The BSW/RCTA indicator
(orange) will appear in the vehicle information
display.
NOTE:
If the BSW system stops working, the
RCTA system (if so equipped) will also
stop working.
Action to take
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the engine
off and restart the engine. If the message
continues to appear, have the system
checked. It is recommendedthat you visit a
NISSAN dealer for this service.
