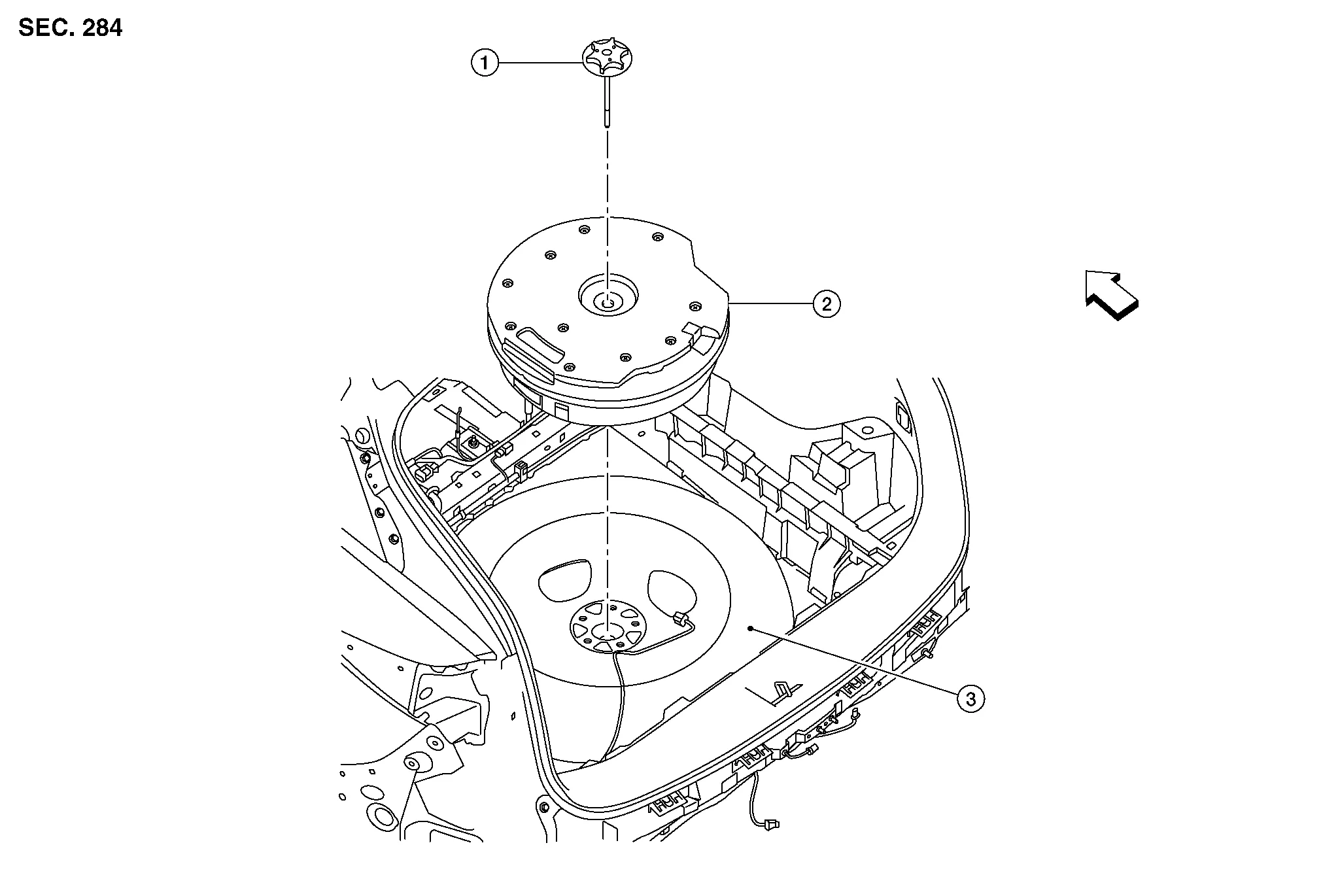

Exploded View

1.	Subwoofer clamp	2.	Subwoofer	3.	Spare tire
	Front

Removal and Installation

REMOVAL

Remove storage box lid. Refer to Removal and Installation.

Remove subwoofer clamp.

Disconnect the harness connector and remove subwoofer.

INSTALLATION

Installation is in the reverse order of removal.
