Nissan Murano: Interior :: Removal and Installation / Luggage Floor Trim
Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Interior :: Removal and Installation / Luggage Floor Trim

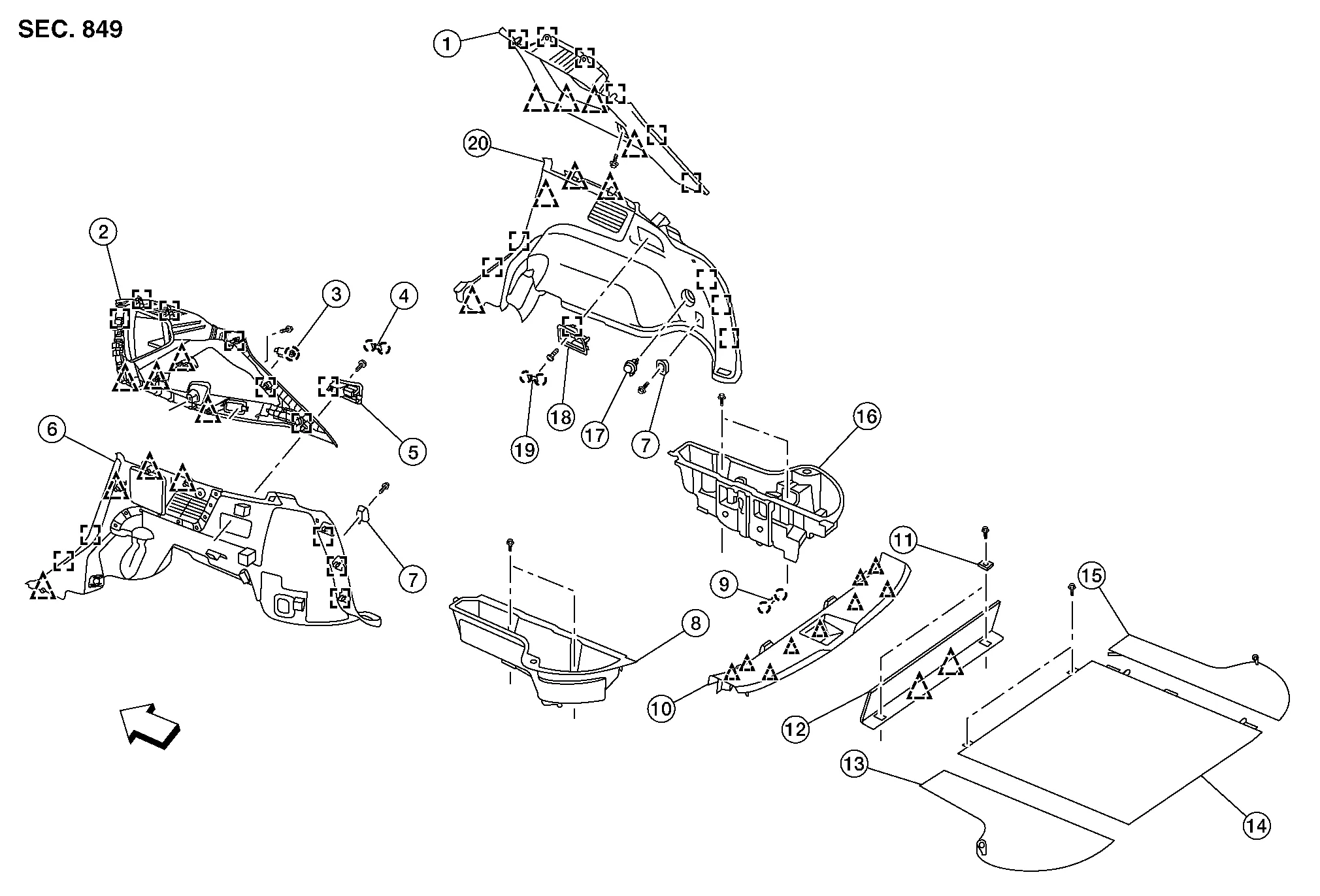

| 1. | Luggage side upper finisher (RH) | 2. | Luggage side upper finisher (LH) | 3. | Cargo lamp |
| 4. | Rear seat control lever finisher escutcheon (LH) | 5. | Rear seat control lever finisher (LH) | 6. | Luggage side lower finisher (LH) |
| 7. | Coat hook (LH/RH) | 8. | Storage box (LH) | 9. | Back door striker finisher |
| 10. | Back door kicking plate | 11. | Luggage floor hook (LH/RH) | 12. | Luggage floor front finisher |
| 13. | Luggage floor side finisher (LH) | 14. | Luggage floor rear finisher | 15. | Luggage floor side finisher (RH) |
| 16. | Storage box (RH) | 17. | Rear cargo power socket | 18. | Rear seat control lever finisher (LH) |
| 19. | Rear seat control lever finisher escutcheon (RH) | 20. | Luggage side lower finisher (LH) |  |
Pawl |
 |
Clip |  |
Metal clip |  |
Front |
Headlining
Exploded View
WITH PANORAMIC ROOF GLASS 1.
Headlining
2.
Assist grip (without coat hanger)
3.
Sun visor holder (LH/RH)
4.
Sun visor (RH)
5...
Luggage Side Lower Finisher
Removal and Installation
REMOVALRemove back door kicking plate. Refer to Removal and Installation.
Remove rear kicking plate. Refer to Removal and Installation - Rear Kicking Plate...
