Nissan Murano: Luggage Floor Trim / Luggage Side Lower Finisher

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Interior :: Removal and Installation / Luggage Floor Trim / Luggage Side Lower Finisher

Removal and Installation

REMOVAL

Remove back door kicking plate. Refer to Removal and Installation.

Remove rear kicking plate. Refer to Removal and Installation - Rear Kicking Plate.

Remove luggage side upper finisher. Refer to Removal and Installation.

Remove second row seat belt anchor bolt. Refer to Exploded View.

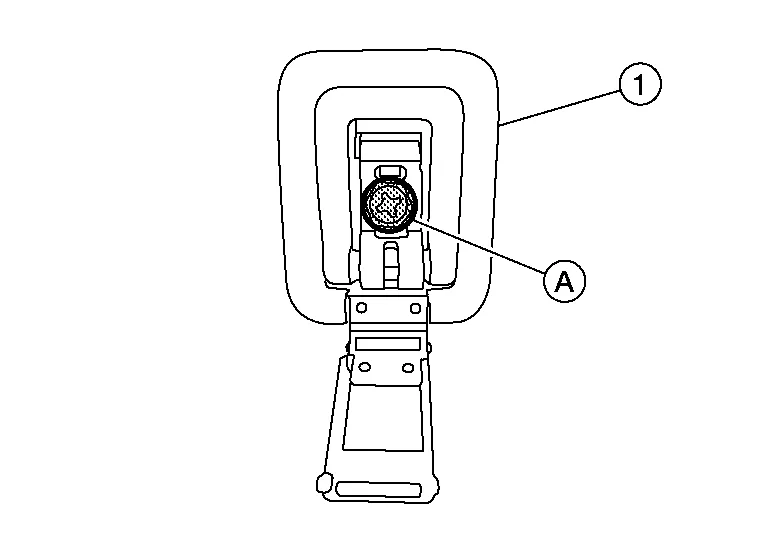

Remove luggage side lower finisher coat hook bolt (A) and coat hook (1).

Remove rear seat control lever finisher escutcheon. Refer to Exploded View.

Remove screw and remove rear seat control lever finisher.

Using a suitable tool remove luggage net hooks.

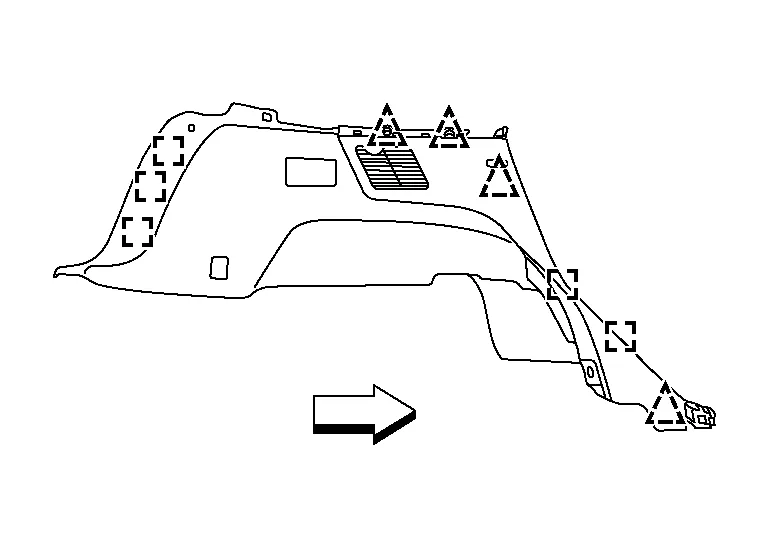

Using a suitable tool release luggage side lower finisher clips.

: Clip

: Metal clip

: Front

Disconnect the harness connector from the power socket (RH only), release the second row seat belt from the luggage side lower finisher and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Visually check clips and pawls for deformation and damage during installation. Replace with new ones if necessary.

When installing luggage side lower finisher, check that clips and pawls are securely placed in body panel holes.

Luggage Floor Trim

Exploded View 1. Luggage side upper finisher (RH) 2. Luggage side upper finisher (LH) 3. Cargo lamp 4. Rear seat control lever finisher escutcheon (LH) 5...

Luggage Side Upper Finisher

Removal and Installation REMOVALRemove luggage side upper finisher bolt (A). Using a suitable tool release pawls and remove second row seat belt d-ring finisher...
