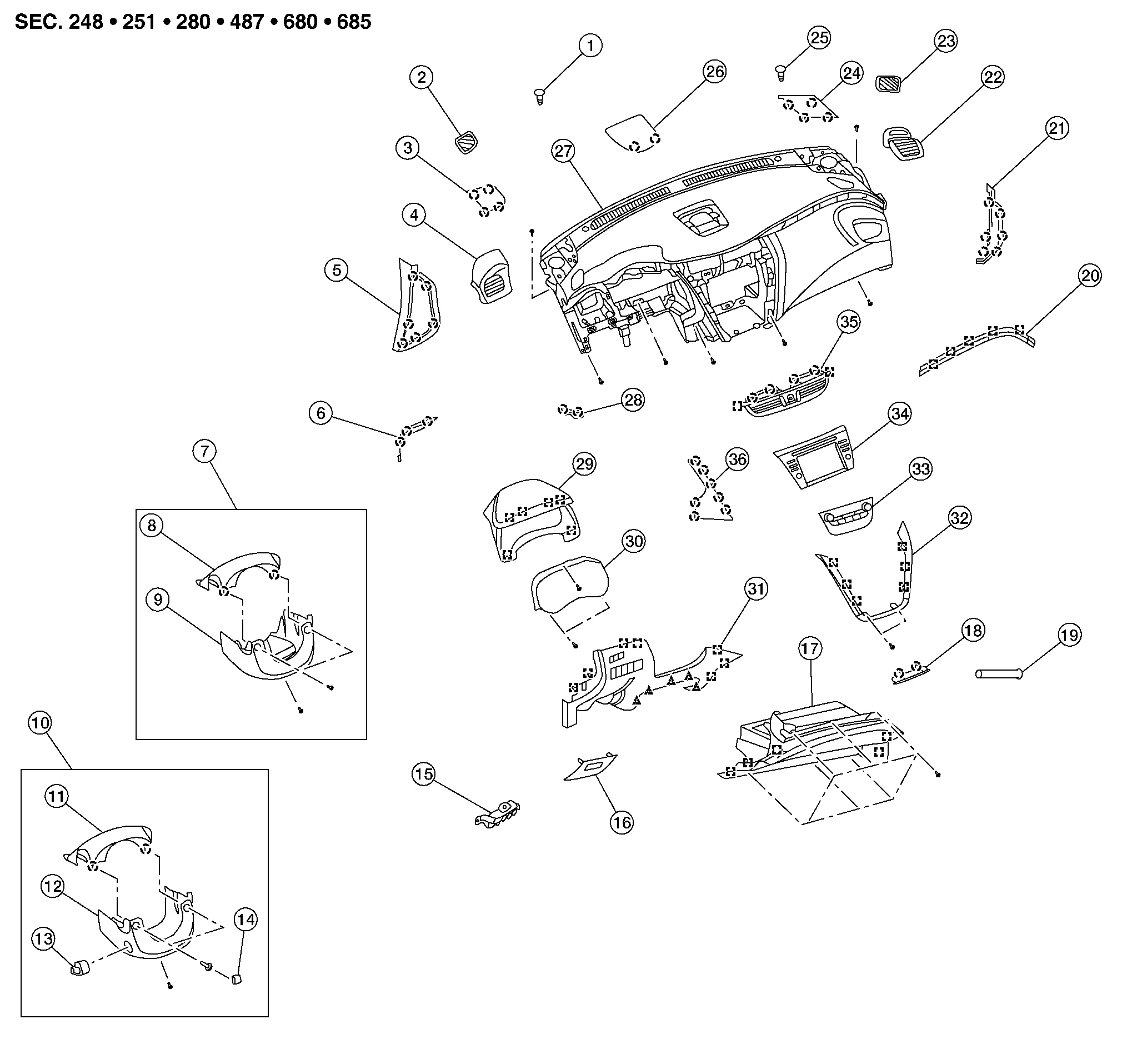

Exploded View

1.	Sunload sensor	2.	Side defroster grille (LH)	3.	Front speaker grille (LH)
4.	Side ventilator grille (LH)	5.	Instrument side finisher (LH)	6.	Instrument finisher A
7.	Steering column cover assembly (without ADP steering switch)	8.	Steering column upper cover	9.	Steering column lower cover
10.	Steering column cover assembly (with ADP steering switch)	11.	Steering column upper cover	12.	Steering column lower cover
13.	ADP steering switch	14.	Steering column cover screw finisher	15.	Switch carrier
16.	Fuse block cover	17.	Glove box assembly	18.	Cluster lid C
19.	Damper	20.	Instrument finisher D	21.	Instrument side finisher (RH)
22.	Side ventilator grille (RH)	23.	Side defroster grille (RH)	24.	Front speaker grille (RH)
25.	Optical sensor	26.	Center speaker grille	27.	Instrument panel assembly
28.	Instrument finisher B	29.	Cluster lid A	30.	Combination meter
31.	Instrument lower panel LH	32.	Cluster lid D	33.	A/C switch assembly
34.	AV control unit	35.	Center ventilator grille	36.	Instrument finisher C
	Pawl		Metal clip		Clip

Instrument Panel :: Removal and Installation

Instrument Panel Assembly

Removal and Installation CAUTION: Be careful not to scratch instrument panel pad and other parts. Whenever a suitable tool is used, always wrap a cloth around the end of the tool to protect components from damage...
