Nissan Murano: Instrument Panel Assembly / Instrument Finisher B

Instrument Finisher a

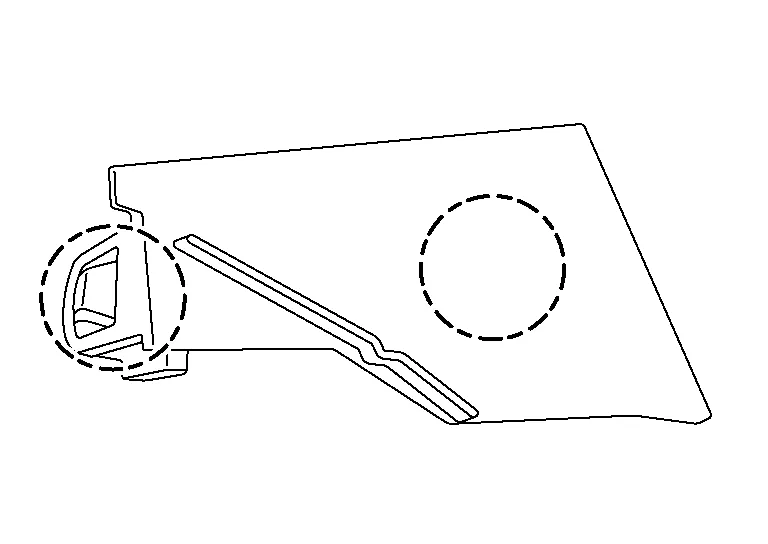

Removal and Installation REMOVALRelease clips using a suitable tool and remove instrument finisher A.: Metal clipINSTALLATIONInstallation is in the reverse order of removal...

Instrument Finisher C

Removal and Installation REMOVALRemove instrument finisher B. Refer to Removal and Installation. Remove cluster lid D. Refer to Removal and Installation...

Other information:

Nissan Murano (Z52) 2015-2024 Service Manual: P2096 A/f Sensor 1

DTC Description DTC DETECTION LOGIC DTC CONSULT screen terms (Trouble diagnosis content) DTC detection condition P2096 POST CAT FUEL TRIM SYS B1 (Post catalyst fuel trim system too lean bank 1) Diagnosis condition — Signal (terminal) — Threshold The output voltage computed by ECM from the A/F sensor 1 signal is shifts to the lean side for a specified period Diagnosis delay time — P2097 POST CAT FUEL TRIM SYS B1 (Post catalyst fuel trim system too rich bank 1) Diagnosis condition — Signal (terminal) — Threshold The A/F signal computed by ECM from the A/F sensor 1 signal is shifts to the rich side for a specified period Diagnosis delay time — P2098 POST CAT FUEL TRIM SYS B2 (Post catalyst fuel trim system too lean bank 2) Diagnosis condition — Signal (terminal) — Threshold The output voltage computed by ECM from the A/F sensor 1 signal is shifts to the lean side for a specified period Diagnosis delay time — P2099 POST CAT FUEL TRIM SYS B2 (Post catalyst fuel trim system too rich bank 2) Diagnosis condition — Signal (terminal) — Threshold The A/F signal computed by ECM from the A/F sensor 1 signal is shifts to the rich side for a specified period Diagnosis delay time — POSSIBLE CAUSEDTC P2096 A/F sensor 1 (bank 1) A/F sensor 1 heater Heated oxygen sensor 2 (bank 1) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks DTC P2097 A/F sensor 1 (bank 1) A/F sensor 1 heater Heated oxygen sensor 2 (bank 1) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks DTC P2098 A/F sensor 1 (bank 2) A/F sensor 1 heater Heated oxygen sensor 2 (bank 2) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks DTC P2099 A/F sensor 1 (bank 2) A/F sensor 1 heater Heated oxygen sensor 2 (bank 2) Fuel pressure Fuel injector Intake air leaks Exhaust gas leaks FAIL-SAFENot applicable DTC Confirmation Procedure PRECONDITIONING If DTC Confirmation Procedure has been previously conducted, always perform the following before conducting the next test...

Nissan Murano (Z52) 2015-2024 Service Manual: Av Control Unit

Exploded View 1. AV control unit bracket (RH) 2. AV control unit 3. AV control unit bracket (LH) 4. A/C auto amp. Removal and Installation REMOVALCAUTION: Before disconnecting the AV control unit and battery terminals, turn the ignition switch OFF and wait at least 30 seconds...
