Nissan Murano: Instrument Panel Assembly / Instrument Finisher C

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Instrument Panel :: Removal and Installation / Instrument Panel Assembly / Instrument Finisher C

Removal and Installation

REMOVAL

Remove instrument finisher B. Refer to Removal and Installation.

Remove cluster lid D. Refer to Removal and Installation.

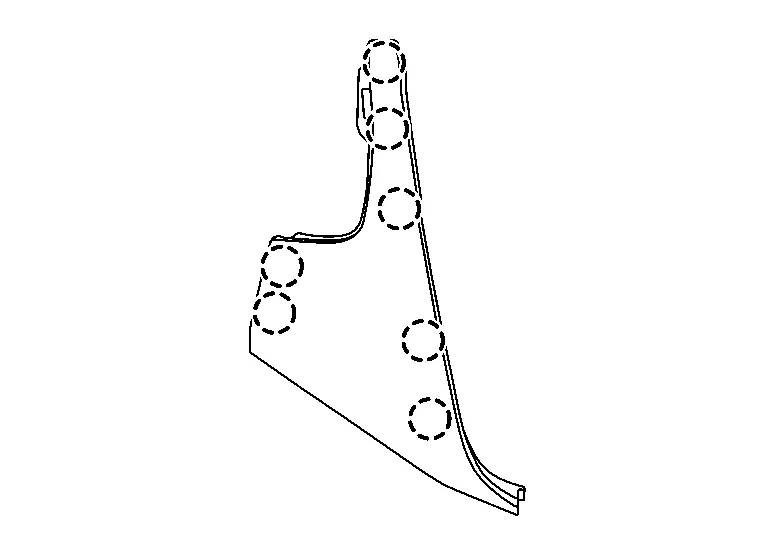

Release the instrument finisher C pawls using a suitable tool and remove.

: Pawl
