Nissan Murano: Steering System :: Removal and Installation / Heated Steering Wheel Switch
Exploded View

| 1. |
Upper switch carrier |
2. |
Middle switch carrier |
3. |
Heated steering wheel switch |
| 4. |
VDC OFF switch |
5. |
Automatic back door switch |
6. |
Mask |
| 7. |
Mask |
8. |
Lower switch carrier |
9. |
Front power return switch |
| 10. |
Instrument lower panel LH |
11. |
Illumination control switch |
|
|
Removal and Installation
REMOVAL
Remove the instrument lower panel LH. Refer to Removal and Installation.
Remove the screws and middle switch carrier from the instrument lower panel LH.

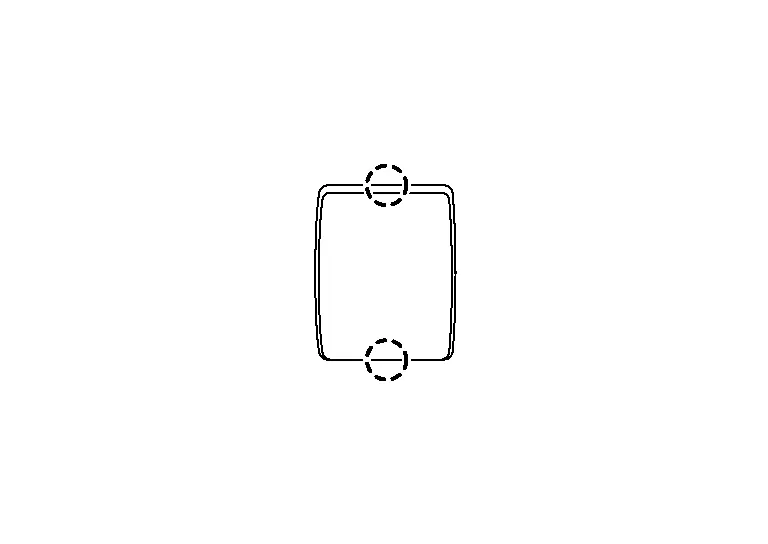

Release pawls using suitable tool and remove the heated steering wheel switch from the middle switch carrier.

: Pawl
INSTALLATION
Installation is in the reverse order of removal.
Exploded View
FWD 1.
Power steering oil pump
2.
Cover
3.
High-pressure piping
4.
Steering gear
5.
Low-pressure piping (lower)
6.
Low-pressure piping (upper)
Clip
Front
NOTE:
Service high-pressure and low-pressure piping as an assembly of hydraulic lines...
Exploded View
1.
Cotter pin
2.
Steering gear
Front
Removal and Installation - FWD
NOTE:
When removing components such as hoses, tubes/lines, etc...
Other information:
DTC Description
DTC DETECTION LOGIC DTC No.
CONSULT screen items
(Trouble diagnosis content) DTC detection condition
C1A03-29
VHCL SPEED SE CIRC
(Nissan Murano Vehicle speed sensor circuit)
Diagnosis condition
When engine is running
When MAIN switch of ICC system is ON
Signal (terminal)
—
Threshold
If the Nissan Murano vehicle speed signal (wheel speed) from ABS actuator and electric unit (control unit) and the CVT vehicle speed sensor signal (output shaft revolution signal) from TCM, received by the ADAS control unit via CAN communication, are inconsistent
Diagnosis delay time
1 second or less
POSSIBLE CAUSE
Wheel speed sensor
ABS actuator and electric unit (control unit)
Nissan Murano Vehicle speed sensor CVT (output speed sensor)
TCM
ADAS control unit
FAIL-SAFEThe following systems are canceled:
Vehicle-to-vehicle distance control mode
Automatic Emergency Braking (AEB) with pedestrian detection
Automatic Emergency Braking (AEB)
Intelligent Forward Collision Warning (I-FCW)
Lane Departure Warning (LDW)
Intelligent Lane Intervention (I-LI)
Blind Spot Warning (BSW)
Rear Cross Traffic Alert (RCTA)
Rear Automatic Braking (RAB)
Confirmation Procedure
CHECK DTC PRIORITY
If DTC “C1A03–29” is displayed with DTC “U1000–01” or “C1A04–97”, first diagnose the DTC “U1000–01” or “C1A04–97”...
CONSULT Function
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go to ”sleep mode”, potentially causing a discharged battery and no-start condition...
