Nissan Murano: Steering System :: Removal and Installation / Hydraulic Line
FWD

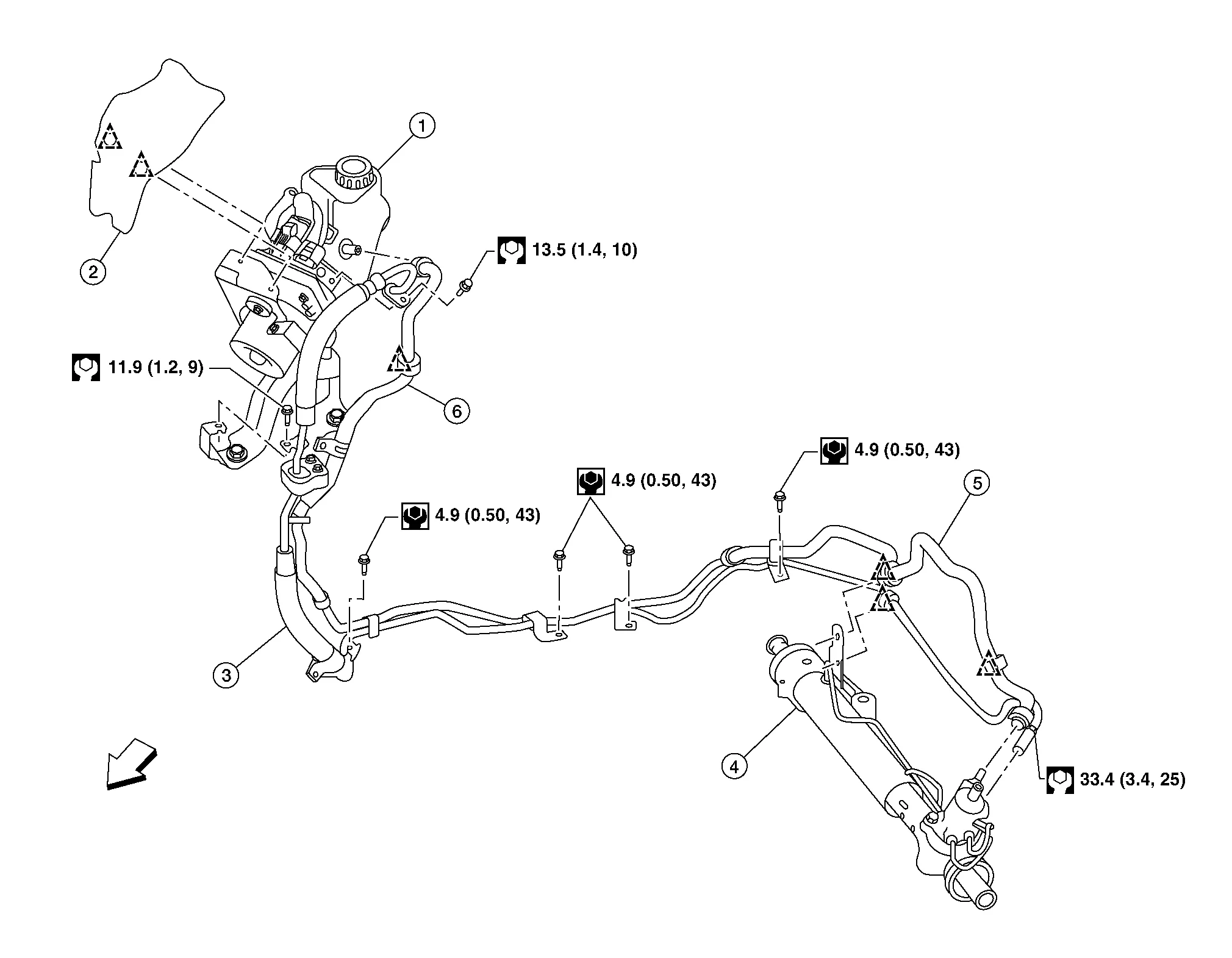

| 1. | Power steering oil pump | 2. | Cover | 3. | High-pressure piping |
| 4. | Steering gear | 5. | Low-pressure piping (lower) | 6. | Low-pressure piping (upper) |
 |
Clip |  |
Front |
NOTE:
Service high-pressure and low-pressure piping as an assembly of hydraulic lines.
AWD

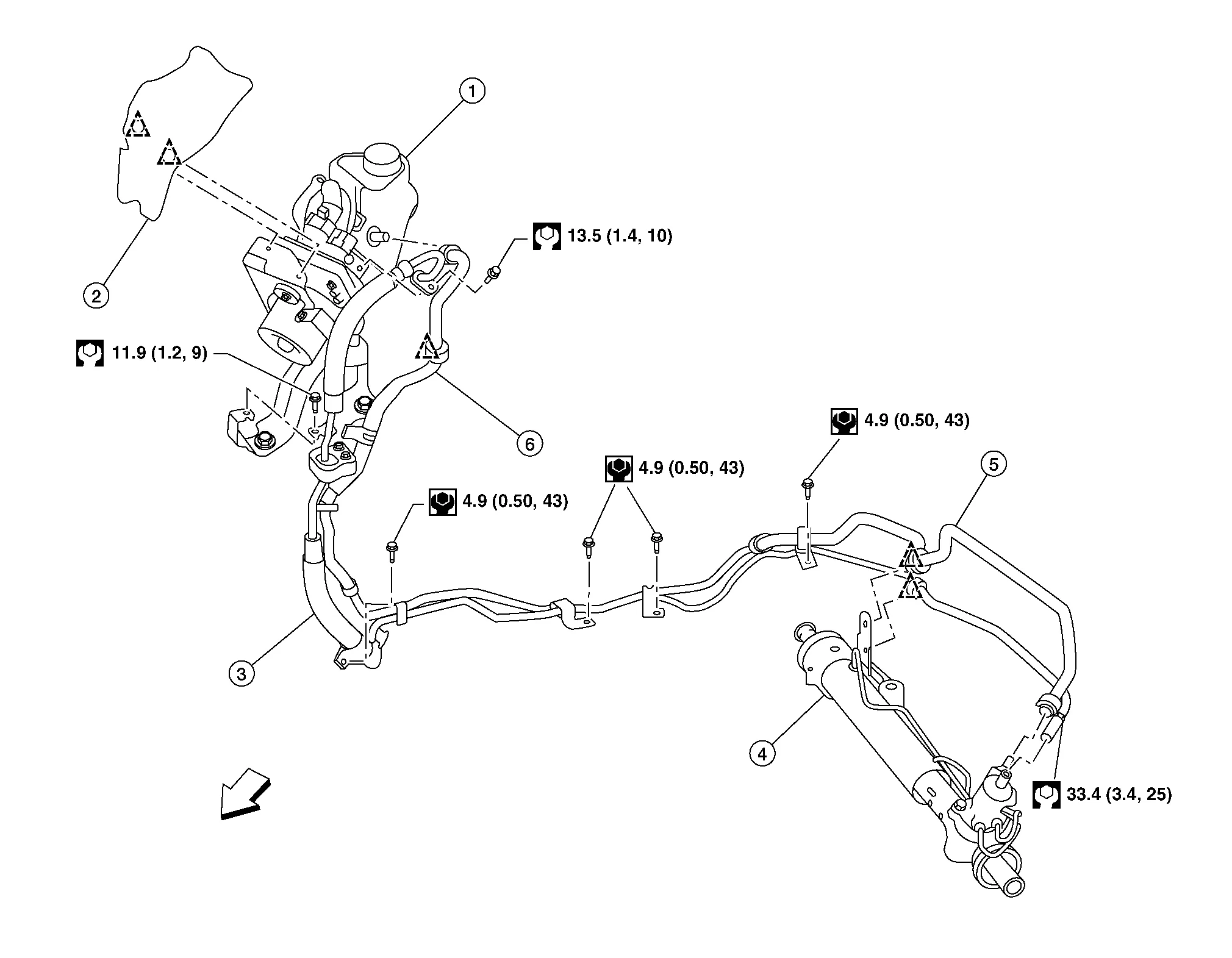

| 1. | Power steering oil pump | 2. | Cover | 3. | High-pressure piping |
| 4. | Steering gear | 5. | Low-pressure piping (lower) | 6. | Low-pressure piping (upper) |
|
Clip | |
Front |
NOTE:
Service high-pressure and low-pressure piping as an assembly of hydraulic lines.
NOTE:
-
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spilling.
-
Service high-pressure piping and low-pressure piping as an assembly of hydraulic lines.
REMOVAL
Refer to the component parts location illustration for hydraulic line removal. Refer to Exploded View.
CAUTION:
-
Do not reuse O-rings.
INSTALLATION
Installation is in the reverse order of removal.
Bleed air from power steering system. Refer to Air Bleeding Hydraulic System.
Check for fluid leaks. Repair as necessary.
CAUTION:
Do not reuse O-rings.
Power Steering Oil Pump
Exploded View
1.
Power steering reservoir cap
2.
Power steering oil pump
3.
Low-pressure piping
4.
High-pressure piping
Front
Removal and Installation
WARNING:
Power steering pump outer shell will be hot while running and after driving...
Heated Steering Wheel Switch
Exploded View
1.
Upper switch carrier
2.
Middle switch carrier
3.
Heated steering wheel switch
4.
VDC OFF switch
5.
Automatic back door switch
6...
