Nissan Murano: Interior :: Removal and Installation / Body Side Trim

Nissan Murano (Z52) 2015-2024 Service Manual / Body Interior / Interior :: Removal and Installation / Body Side Trim

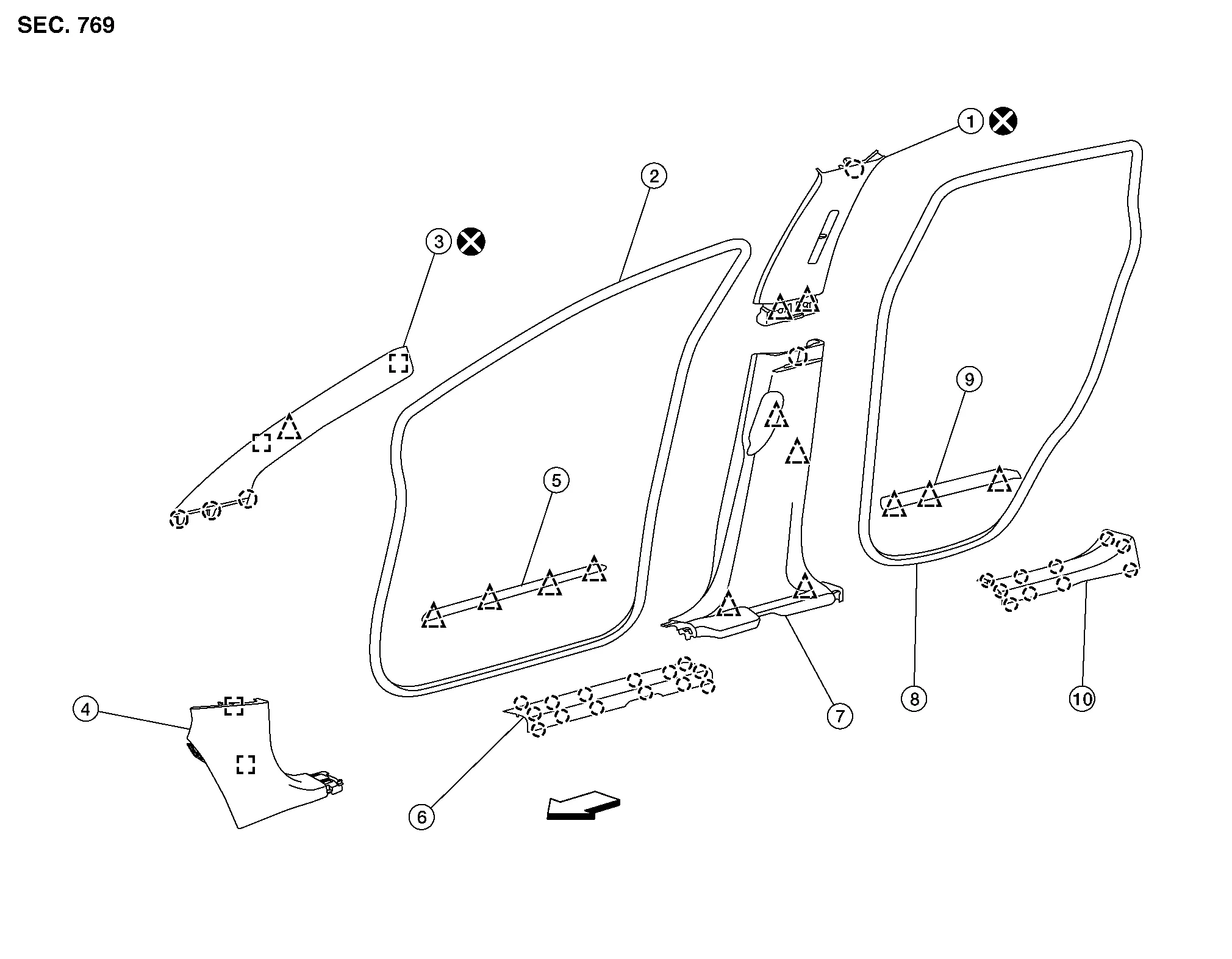

Exploded View

1.	Center pillar upper finisher	2.	Front door welt	3.	Front pillar finisher
4.	Dash side finisher	5.	Front outer kicking plate	6.	Front inner kicking plate
7.	Center pillar lower finisher	8.	Rear door welt	9.	Rear outer kicking plate
10.	Rear inner kicking plate		Clip		Pawl
	Metal clip		Front

Rear Door Finisher

Exploded View 1. Rear door 2. Rear door finisher 3. Inside door handle escutcheon 4. Rear power window switch 5. Pull handle cap Clip Pawl Front Removal and Installation REMOVALUsing a suitable tool release pawls and remove pull handle cap then remove rear door finisher bolt...

Front Pillar Finisher

Removal and Installation REMOVALPartially remove front door welt. Refer to Exploded View. Using a suitable tool, release metal clips and pawls from front pillar finisher (1)...
