Nissan Murano: Body Side Trim / Center Pillar Upper Finisher
REMOVAL
Remove center pillar lower finisher. Refer to Removal and Installation.
Release pawls, using a suitable tool (A) and remove seat belt height adjuster bolt cover (LH).
: Pawl
Remove seat belt d-ring anchor bolt.

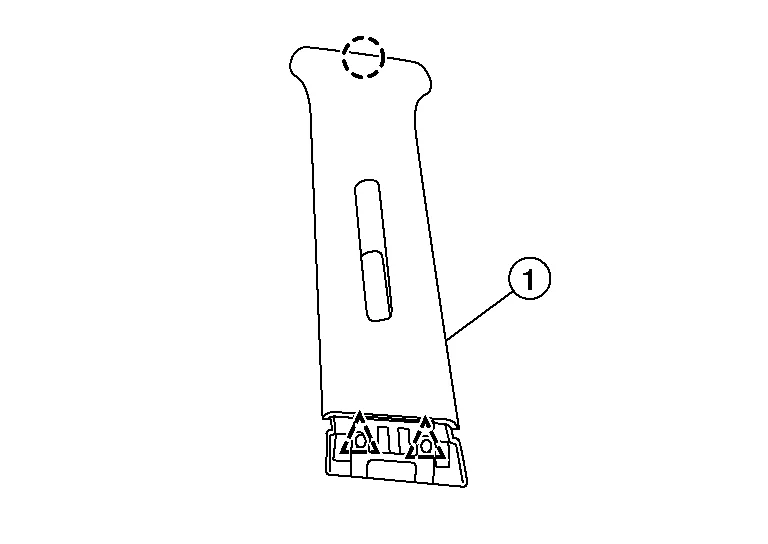

Release center pillar upper finisher (1) pawl and clips using a suitable tool.
: Clip
: Pawl
CAUTION:
-
Do not reuse center pillar upper finisher.
-
Do not bend sheet metal when removing center pillar upper finisher from sheet metal.
-

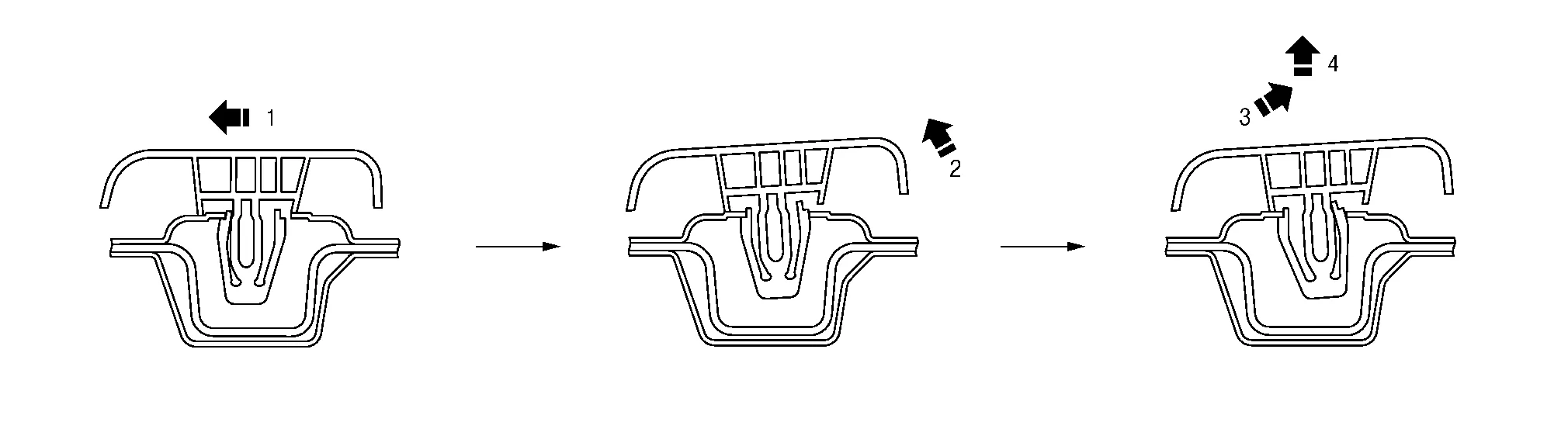

When releasing molded in clip, follow steps as shown to prevent finisher or clip damage.
Release seat belt from center pillar upper finisher and remove.
CAUTION:
Do not reuse center pillar upper finisher.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
Do not reuse center pillar upper finisher. Replace with new part for installation.
-
Visually check sheet metal around clip and pawl locations to confirm no deformation from removal of center pillar upper finisher. Repair sheet metal if necessary.
-
When installing center pillar upper finisher, check that clips and pawl are securely placed in body panel holes.
