Nissan Murano: Dtc/circuit Diagnosis / B130d Tel Line Out Error
DTC DETECTION LOGIC
| DTC No. |
CONSULT screen terms (Trouble diagnosis content) | DTC detection condition | |
|---|---|---|---|
| B130D |
TEL LINE OUT ERROR (Telephone line out error) |
Diagnosis condition | When ignition switch is ON. |
| Signal (terminal) | Sound signal between TCU and AV control unit (terminals 31 and 32) | ||
| Threshold | — | ||
| Diagnosis delay time | 1 second or more | ||
POSSIBLE CAUSE
-
Sound signal circuits between TCU and AV control unit
-
TCU
-
AV control unit
FAIL-SAFE
Telematics system function stops
PERFORM DTC CONFIRMATION PROCEDURE
CONSULT
-
Ignition switch ON.
-
Erase DTC.
-
Select “Self Diagnostic Result” mode of ”TELEMATICS”.
-
Check DTC.
Is DTC U130D detected?
YES>>Proceed to DTC Diagnosis Procedure.
NO>>To check malfunction symptom before repair: Refer to Intermittent Incident.
NO>>Confirmation after repair: Inspection End.
CHECK CONTINUITY BETWEEN TCU AND AV CONTROL UNIT CIRCUIT
-
Ignition switch OFF.
-
Disconnect TCU connector and AV control unit connector.
-
Check continuity between TCU connector and AV control unit connector.
TCU AV control unit Continuity Connector Terminal Connector Terminal M126 31 M162 32 Yes 32 52 -
Check continuity between TCU connector and ground.
TCU Ground Continuity Connector Terminal M126 31 No 32
Is the inspection result normal?
YES>>GO TO 2.
NO>>Repair or replace harness or connectors.
CHECK SOUND SIGNAL
-
Connect TCU connector and AV control unit connector.
-
Ignition switch ON.
-
Check signal between the terminals of TCU connector.

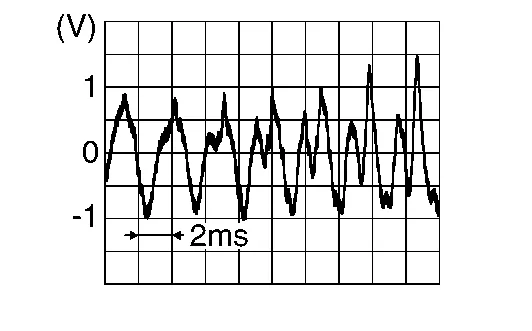

TCU Condition Reference value Connector (+) (−) Terminal M126 31 32 When interior sound is input
Is the inspection result normal?
YES>>Replace TCU. Refer to Removal and Installation.
NO>>Replace AV control unit. Refer to Removal and Installation.
B130c Tcu Pairing Error
DTC Description
DTC DETECTION LOGIC DTC No.
CONSULT screen terms
(Trouble diagnosis content) DTC detection condition
B130C
TCU pairing error
(TCU pairing error)
Diagnosis condition
When ignition switch is ON...
B1310 Tcu Temperature Error
DTC Description
DTC DETECTION LOGIC DTC No.
CONSULT screen terms
(Trouble diagnosis content) DTC detection condition
B1310
TCU TEMPERATURE ERROR
(TCU temperature error)
Diagnosis condition
When ignition switch is ON...
