Nissan Murano: Safety and Health / Working with Body Straightening Equipment
-
Use of work clothes should be the same as for “PROTECTORS”. Refer to Protectors.
-
Wear a safety helmet and safety shoes.
-
When working under a Nissan Murano vehicle or when using a grinder, wear goggles.
-

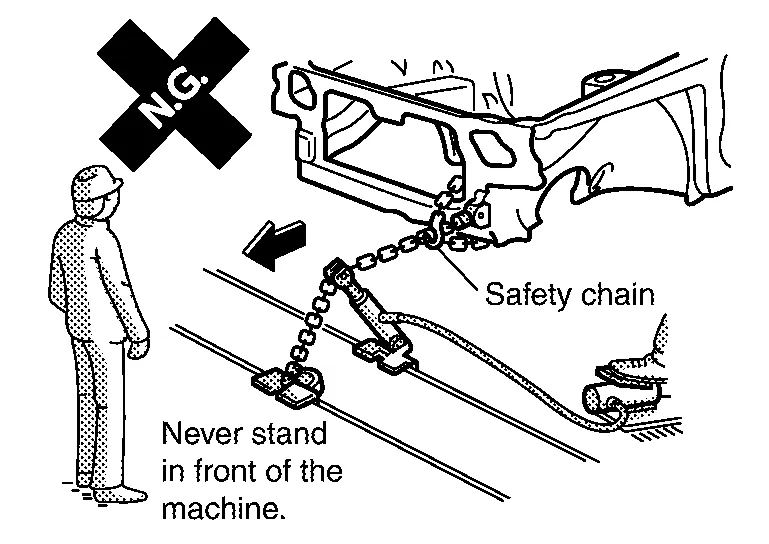

To prevent danger in case the clamp slips or the panel breaks, be sure to apply a safety chain. Be careful not to stand near the area where the chain is stretched.
-
To prevent danger, any excessive slack in the safety chain must be taken up and properly wound.
-
Do not wear a working glove on the hand that is hammering.
-
Cracked glass must be removed or taped to prevent separation.
-
Any cut panels must be protected with cloth or tape.
-

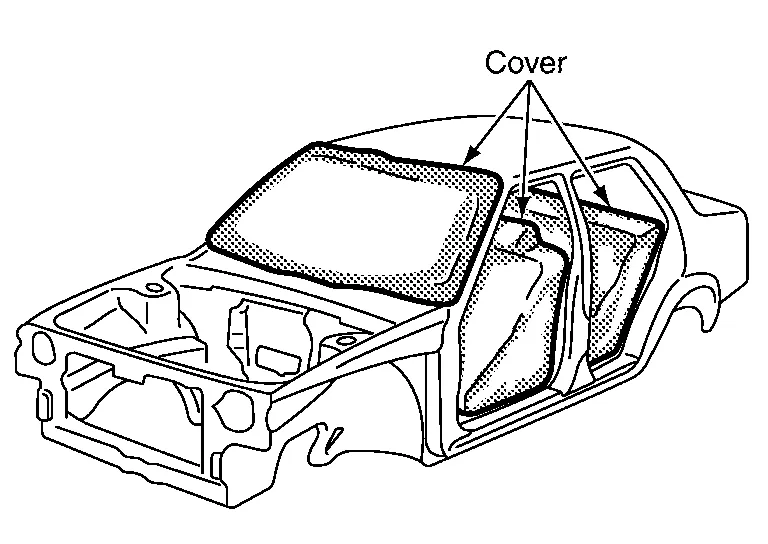

The seats and glass must be removed or covered with incombustible material, according to the type of work to be done, to prevent contamination and welding spatter.
-

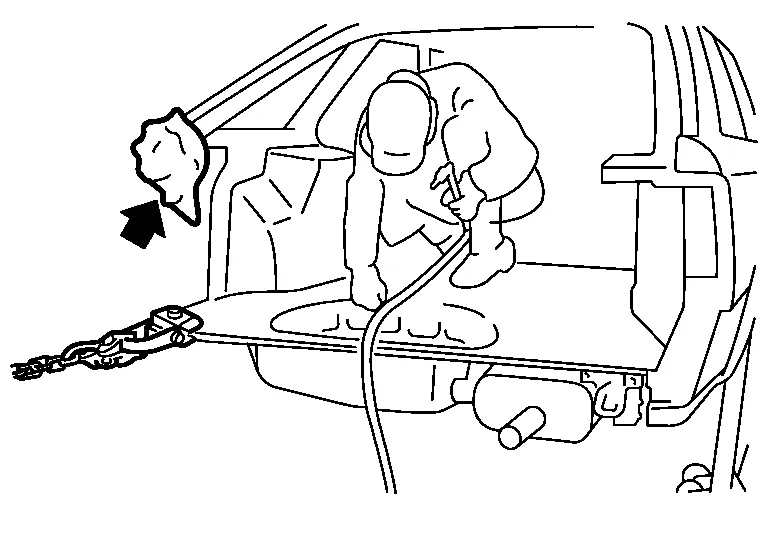

When removing parts, utilize padding (cloth) or protective tape.
Precautions for Operation
Precautions for Operation
In body repair, great importance is attached to quality, efficiency and cost. Consideration for workers' safety and health should, however, be deemed as the most important item...
Working with Grinding the Body Filler (putty)
Danger from Dust
If workers continue to inhale dust generated during paint film removal or body filler grinding work for long periods, they may suffer from respiratory insufficiency, which results in pneumoconiosis or asthma...
