Nissan Murano: Removal and Installation / Fuel Pump Control Module
Nissan Murano (Z52) 2015-2024 Service Manual / Engine / Engine Control System :: Vq35de / Removal and Installation / Fuel Pump Control Module

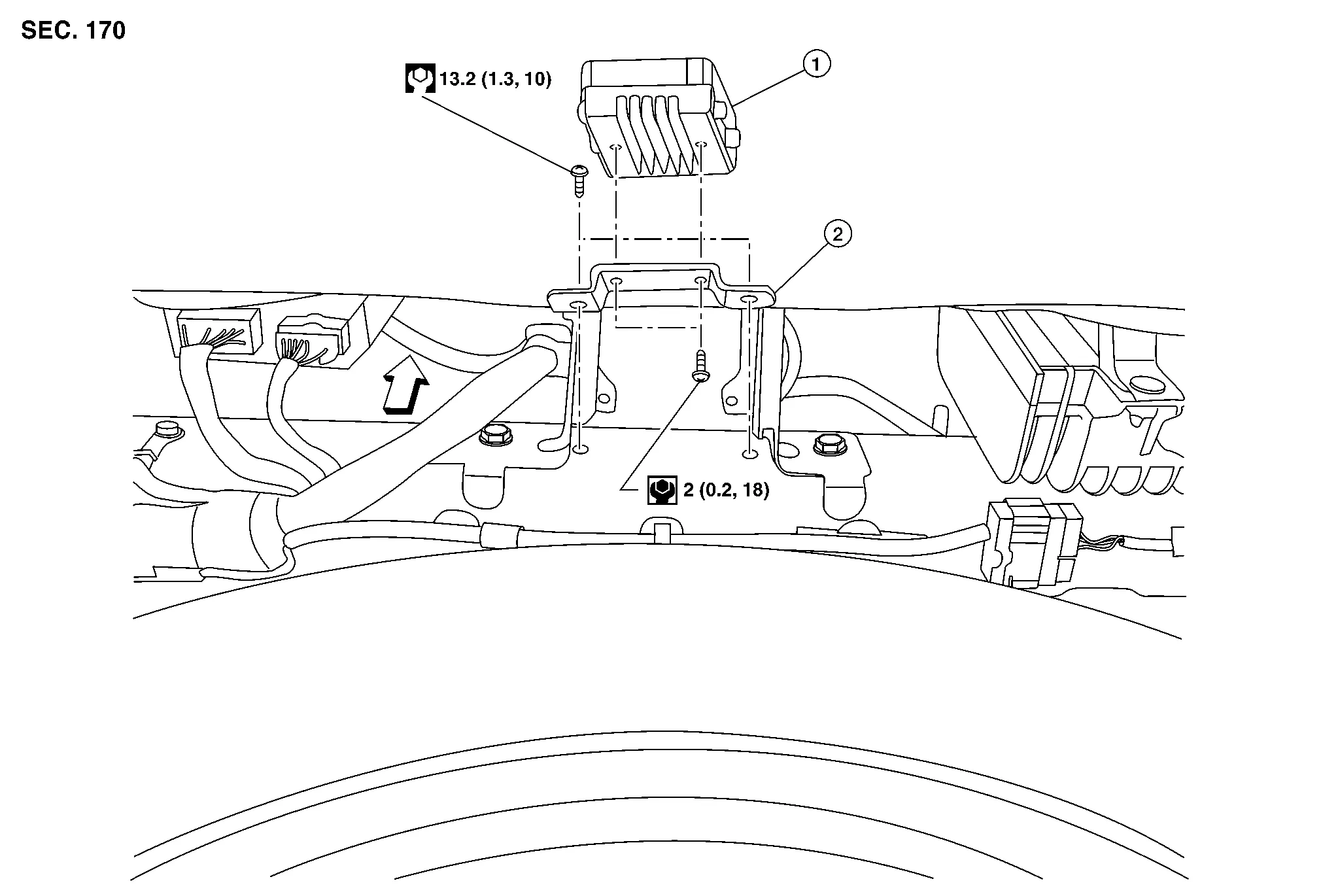

| 1. | Fuel pump control module (FPCM) | 2. | FPCM bracket |  |
Front |
REMOVAL
Lift luggage floor rear finisher and locate fuel pump control module (FPCM) behind luggage mask.

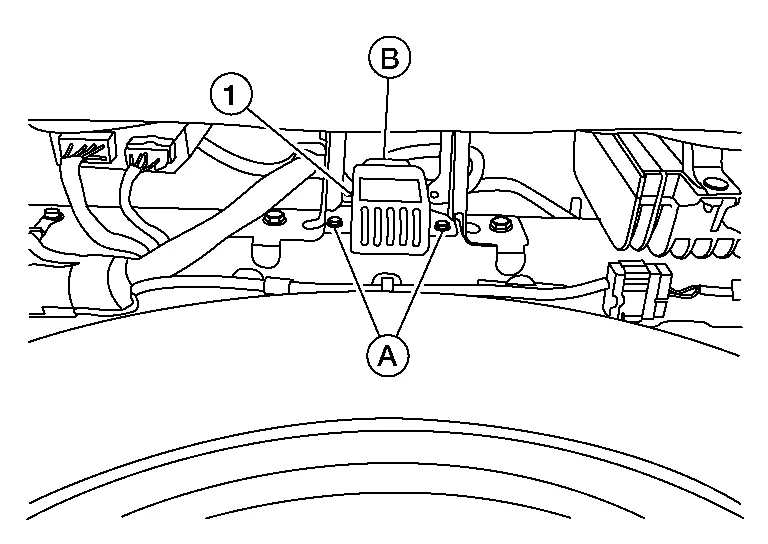

Remove bolts (A) from the bracket.
Disconnect the harness connector (B) from the fuel pump control module (1) and then remove fuel pump control module.
INSTALLATION
Installation is in the reverse order of removal.
Ecm
Exploded View
1.
ECM bracket
2.
ECM
3.
ECM cover
Front
Removal and Installation
CAUTION:
Perform ADDITIONAL SERVICE WHEN REPLACING ECM...
Service Data and Specifications (sds). Service Data and Specifications (sds)
Idle Speed
Condition Specification
No load* (in P or N position)
625 ± 50 rpm
*: Under the following conditions
A/C switch: OFF
Electric load: OFF (Lights, heater fan & rear window defogger)
Steering wheel: Kept in straight-ahead position
Ignition Timing
Condition Specification
No load* (in P or N position)
12 ± 2° BTDC
*: Under the following conditions
A/C switch: OFF
Electric load: OFF (Lights, heater fan & rear window defogger)
Steering wheel: Kept in straight-ahead position
Calculated Load Value
Condition Specification (Using CONSULT or GST)
At idle
10 – 35 %
At 2,500 rpm
10 – 35 %
Mass Air Flow Sensor
Supply voltage
Approx...
