Nissan Murano: Safety and Health / Working with Grinding the Body Filler (putty)

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Body Repair :: Fundamentals / Service Information / Safety and Health / Working with Grinding the Body Filler (putty)

Danger from Dust

If workers continue to inhale dust generated during paint film removal or body filler grinding work for long periods, they may suffer from respiratory insufficiency, which results in pneumoconiosis or asthma.

Precautions during Dust Generating Work
  • Workers must use a sander equipped with a dust collecting function.

  • Workers must work in the facilities where a dust collector is installed on the floor or the wall.

Protector and Equipment

(1) DUSTPROOF RESPIRATOR

  • This is an important protector to prevent workers from inhaling dust.

  • The cup type, gauze type, and other types of respirators are available.

  • The respirators with the deodorizing function which utilizes activated carbons, or with the exhaust valve to release air can be selected.

  • In order to maximize the respirator performance, be sure to cover your nose and mouth.

  • Do not use the respirator whose useful life has expired. This is because the function of the respirator has been deteriorated.

(2) DUSTPROOF GOGGLES

  • Dustproof goggles prevent dust from entering workers' eyes.

  • Goggles which can be worn on top of ordinary eyeglasses are also available.

(3) DUST COLLECTOR

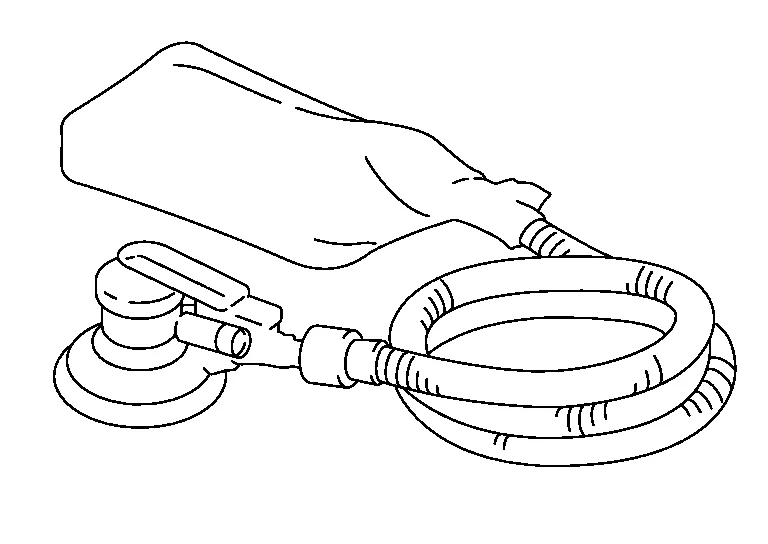

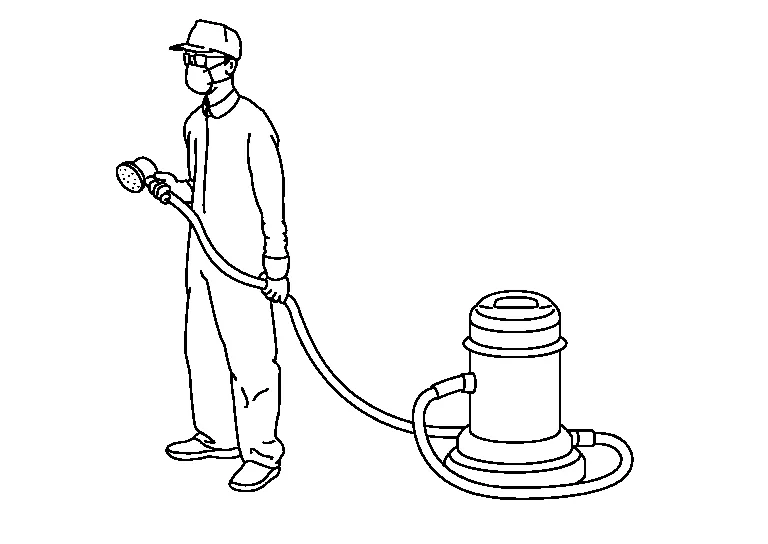

Dustproof sander equipped with dust collecting bag Dustproof sander hose connected to the industrial cleaner

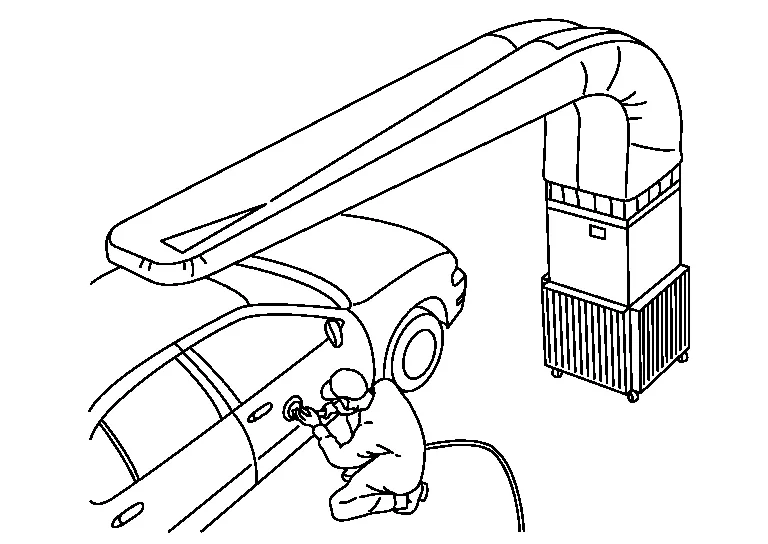

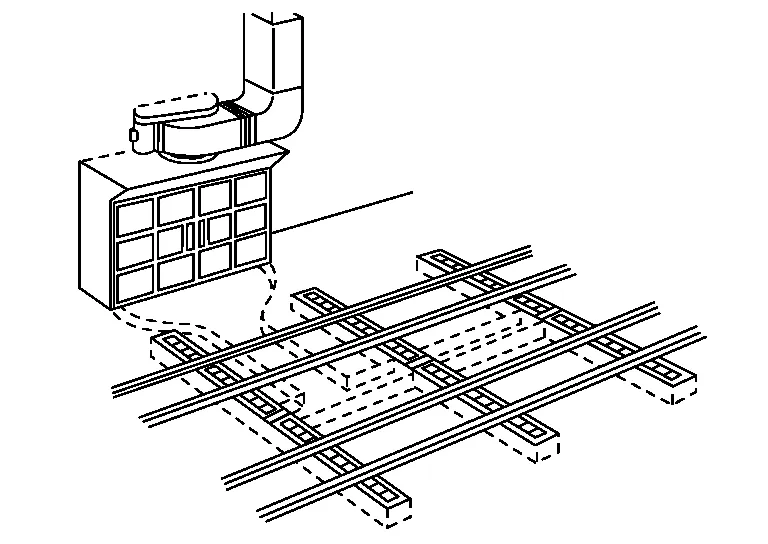

Dust collector installed on the floor or the wall
  • Dust collected through the filter

  • Ambient air forcibly circulated

Precautions during Air Blow
  • Workers must wear dustproof goggles and dustproof respirators, even during cleaning work after grinding.

  • Adjust the pressure for air blow duster gun to prevent dust from being scattered all over the place.

  • Be sure not to disturb other workers.

    Working with Body Straightening Equipment

    Use of Protectors Use of work clothes should be the same as for “PROTECTORS”. Refer to Protectors. Wear a safety helmet and safety shoes. When working under a Nissan Murano vehicle or when using a grinder, wear goggles...

    Paint Safety Precautions

    Paint Safety Precautions Observe the following precautions to maintain a safe painting work area. Wear an approved respirator and eye protection when painting...
