Nissan Murano: Automatic operation (if so equipped) / Tilt and telescopic operation

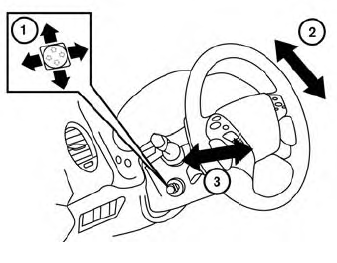

To adjust the steering wheel move the
switch
in the following directions:
- Adjust the steering wheel up or down in
direction
to the desired tilt
position. - Adjust the steering wheel forward or
backward in direction
to the
desired
telescopic position.
CAUTION
For vehicles with automatic drive positioner: Failure to reset the tilt and telescoping functions of the steering wheel, after the vehicle’s battery has been discharged, may prevent the steering wheel position from being adjusted.
For vehicles with automatic drive positioner: Both the tilt and telescopic steering operation must be reset after the vehicle’s battery has been discharged in order to prevent the tilt and telescopic operation from locking in one position. When the battery has been recharged or replaced, perform the following:
- For tilt operation, adjust the switch
so the steering wheel moves to the
highest position
that can be
reached. - For telescopic operation, adjust the
switch
so the steering wheel
moves
to the most forward and backward position
that can be reached.
Performing these operations resets the range of the steering wheel’s tilt and telescopic function.
Entry/Exit function
The automatic drive positioner system will
make the steering wheel move up automatically
when the driver’s door is opened
and the ignition switch is in the LOCK position...
