Nissan Murano. System maintenance

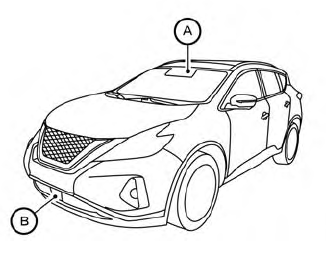

The radar sensor is located on the front of the vehicle Nissan Murano. System maintenance. The camera is located on the upper side of the windshield Nissan Murano. System maintenance.

To keep the AEB with Pedestrian Detection system operating properly, be sure to observe the following:

  • Always keep the sensor areas of the front bumper and windshield clean.
  • Do not strike or damage the areas around the sensors (e.g., bumper, windshield).
  • Do not cover or attach stickers, or install any accessory near the sensors. This could block sensor signals and/or cause failure or malfunction.
  • Do not attach metallic objects near the radar sensor (brush guard, etc.). This could cause failure or malfunction.
  • Do not place reflective materials, such as white paper or a mirror,on the instrument panel. The reflection of sunlight may adversely affect the camera unit’s detection capability.
  • Do not alter, remove or paint the front bumper. Before customizing or restoring the front bumper, it is recommended that you visit a NISSAN dealer.

Radio frequency statement

For USA

FCC ID OAYARS4B

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation.

FCC Warning

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For Canada

Model: ARS4–B

IC: 4135A-ARS4B

FCC ID: OAYARS4B

This device complies with Part 15 of the FCC Rules and with Industry Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions:

  1. This device may not cause interference, and
  2. This device must accept any interference received, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:

  1. L’appareil ne doit pas produire de brouillage, et
  2. L’utilisateur de l’appareil doit accepter tout brouillage radioйlectrique subi, mкme si le brouillage est susceptible d’en compromettre le fonctionnement.

Radio frequency radiation exposure information:

This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance of 30 cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Cet йquipement est conforme aux limites d’exposition aux rayonnements IC йtablies pour un environnement non contrфlй.

Cet йquipement doit кtre installй et utilisй avec un minimum de 30 cm de distance entre la source de rayonnement et votre corps.

FCC Notice

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

    System malfunction

    If the AEB with Pedestrian Detection system malfunctions, it will be turned off automatically, a chime will sound, the AEB with Pedestrian Detection system warning light (orange) will illuminate and the warning message [Malfunction] will appear in the vehicle information display...
