Nissan Murano: Push-button ignition switch / Operating range

The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range.
When the Intelligent Key battery is almost
discharged or strong radio waves are present
near the operating location, the Intelligent
Key system’s operating range becomes
narrower and may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key,
to push the ignition switch to start the engine.

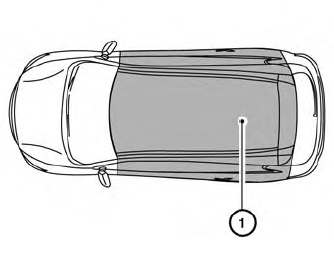

The operating range of the engine start
function is inside of the vehicle
.
- The luggage area is not included in the
operating range, but the Intelligent Key
may function.
- If the Intelligent Key is placed on the
instrument panel or inside the glove
box, storage bin or door pocket, the Intelligent
Key may not function.
- If the Intelligent Key is placed near the
door or window outside the vehicle, the
Intelligent Key may function.
WARNING
Do not operate the push-button ignition
switch while driving the vehicle except
in an emergency. (The engine will
stop when the ignition switch is pushed
three consecutive times in less than
1...
LOCK (Normal parking position)
The ignition switch can only be locked in
this position.
The ignition switch will be unlocked when it
is pushed to the ACC position while carrying
the Intelligent Key...
