Nissan Murano: System / Tachometer
System Description

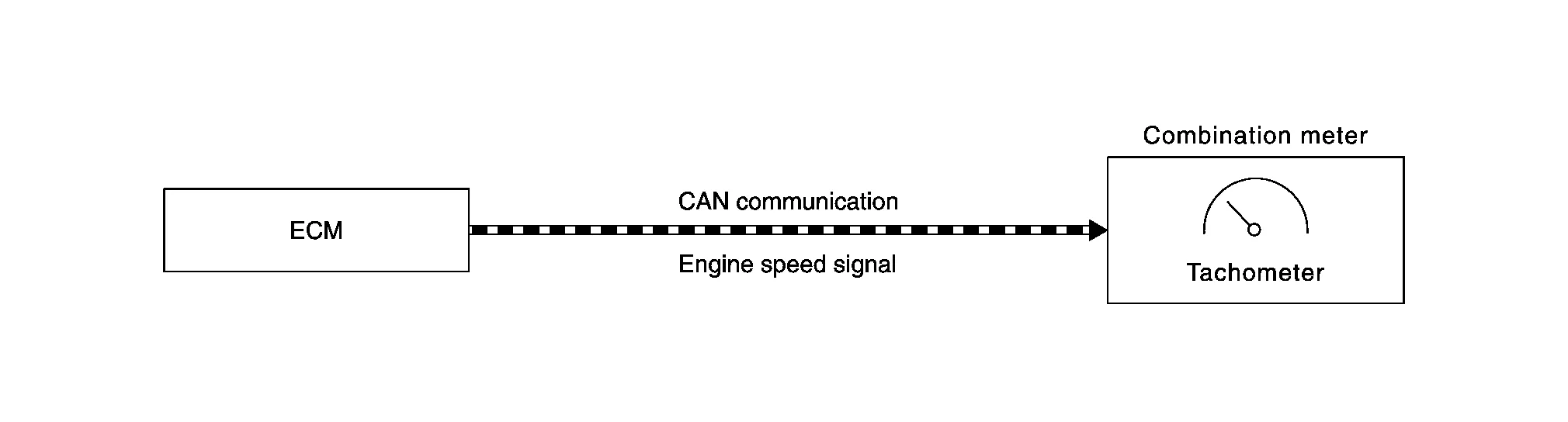

SYSTEM DIAGRAM

DESCRIPTION
The crank position sensor sends a crankshaft position signal to the ECM. The ECM provides an engine speed signal to the combination meter via CAN communication lines. The tachometer indicates engine speed in revolutions per minute (rpm).
System Description
SYSTEM DIAGRAMDESCRIPTIONThe ABS actuator and electric unit (control unit) receives each wheel speed sensor signal and provides a Nissan Murano vehicle speed signal to the combination meter via CAN communication lines...
System Description
SYSTEM DIAGRAMDESCRIPTIONThe engine coolant temperature sensor sends an engine coolant temperature signal to the ECM. The ECM provides an engine coolant temperature signal to the combination meter via CAN communication lines...
Other information:
Diagnosis Procedure
VDC function, TCS function, ABS function, EBD function, brake assist function or hill start assist function operates in excessive operation frequency.CHECK BRAKING FORCE
Check brake force using a brake tester.
Is the inspection result normal?
YES>>
GO TO 2...
Component Parts Location
No. Component Function
1.
Combination meter
Refer to Combination Meter for detailed component location.
2.
IPDM E/R (Intelligent Power Distribution Module Engine Room)
Refer to System Description.
3.
3CH CAN gateway
Refer to Component Parts Location for detailed component location...
