Nissan Murano: System / Speedometer

Meter System

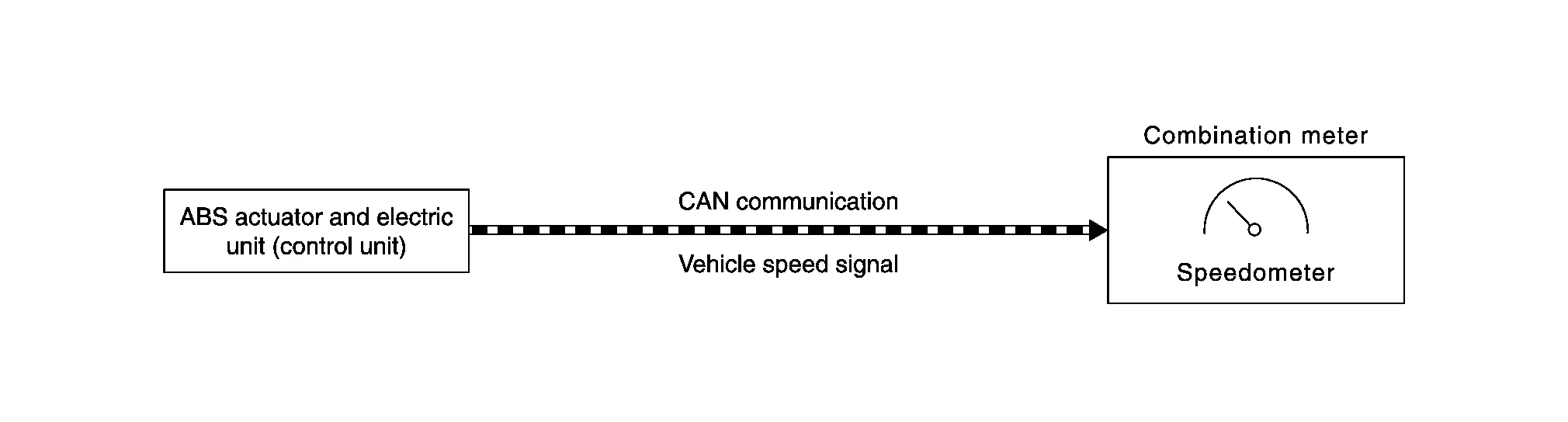

System Description SYSTEM DIAGRAMCombination Meter Input Signal (CAN Communication Signal) Transmit unit Signal name ABS actuator and electric unit (control unit) Nissan Murano Vehicle speed signal ABS warning lamp signal VDC warning lamp signal VDC OFF indicator lamp signal Brake warning lamp signal BCM Dimmer signal Position light request signal Door switch signal Front fog light request signal High beam request signal Meter display signal Sleep wake up signal Buzzer output signal Tire pressure data signal Key ID signal Turn indicator signal TPMS malfunction warning lamp signal Starter relay status signal Low tire pressure warning lamp signal TCM Shift position signal CVT CHECK warning lamp signal ECM Engine speed signal ASCD status signal Engine coolant temperature signal Fuel consumption monitor signal Malfunctioning indicator lamp signal Engine status signal Engine oil pressure sensor signal Fuel-filler cap warning display signal AWD control unit (if equipped) AWD warning lamp signal A/C auto amp...

Tachometer

System Description SYSTEM DIAGRAMDESCRIPTIONThe crank position sensor sends a crankshaft position signal to the ECM. The ECM provides an engine speed signal to the combination meter via CAN communication lines...
