Nissan Murano: System / Engine Coolant Temperature Gauge

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Information & Multimedia / Meter, Warning Lamp & Indicator :: System Description / System / Engine Coolant Temperature Gauge

System Description

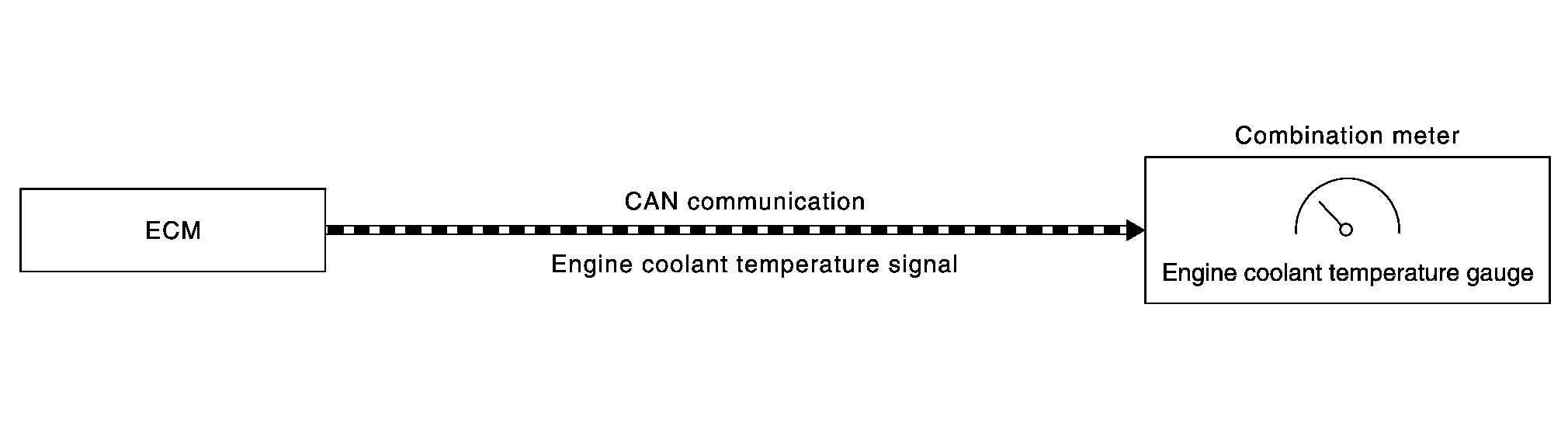

SYSTEM DIAGRAM

DESCRIPTION

The engine coolant temperature sensor sends an engine coolant temperature signal to the ECM. The ECM provides an engine coolant temperature signal to the combination meter via CAN communication lines. The engine coolant temperature gauge indicates the engine coolant temperature.
