Nissan Murano: Automatic Emergency Braking (AEB) with Pedestrian Detection (if so equipped) / System temporarily unavailable

Nissan Murano 2015-2022 Owners Manual / Starting and driving / Automatic Emergency Braking (AEB) with Pedestrian Detection (if so equipped) / System temporarily unavailable

Nissan Murano. System temporarily unavailable

Condition A:

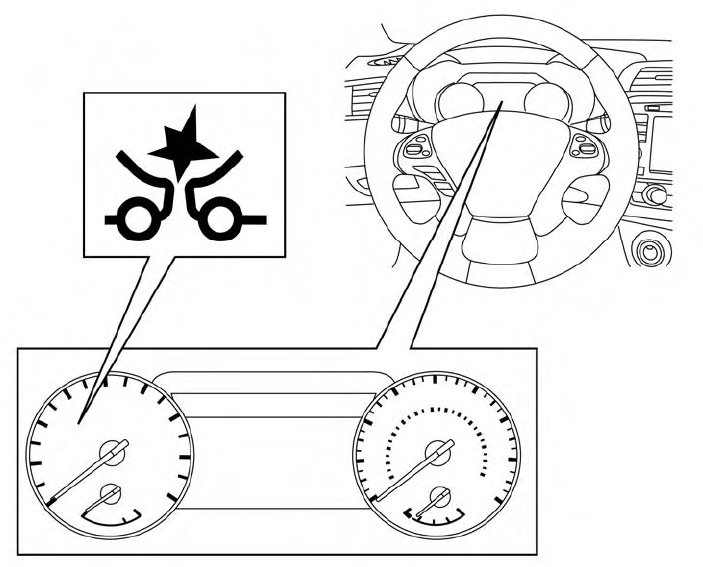

In the following conditions, the AEB with Pedestrian Detection system warning light blinks and the system will be turned off automatically:

  • The radar sensor picks up interference from another radar source.
  • The camera area of the windshield is misted or frozen.
  • Strong light is shining from the front.
  • The cabin temperature is over approximately 104°F (40°C) in direct sunlight.
  • The camera area of the windshield glass is continuously covered with dirt, etc.

Action to take

When the above conditions no longer exist, the AEB with Pedestrian Detection system will resume automatically.

NOTE:

When the inside of the windshield on the camera area is misted or frozen, it will take a period of time to remove it after the A/C turns on. If dirt appears on this area, it is recommended that you visit a NISSAN dealer.

Condition B:

When the radar sensor of the front bumper is covered with dirt or is obstructed, the AEB system will automatically be canceled. The chime will sound and the “Unavailable: Front Radar Obstruction” warning message will appear in the vehicle information display.

Action to take:

If the warning message appears, stop the vehicle in a safe place, place the shift lever in the P (Park) position, and turn the engine off. When the radar signal is temporarily interrupted, clean the sensor area of the front bumper and restart the engine. If the “Unavailable: Front Radar Obstruction” warning message continues to be displayed, have the system checked. It is recommended that you visit a NISSAN dealer for this service.

Condition C

When driving on roads with limited road structures or buildings (for example, long bridges, deserts, snowfields, driving next to long walls), the system may illuminate the system warning light and display the “Unavailable: Front Radar Obstruction” message.

Action to take:

When the above driving conditions no longer exist, turn the system back on.

NOTE:

If the AEB system stops working, the I-FCW system will also stop working.

    AEB with Pedestrian Detection system limitations

    WARNING Listed below are the system limitations for the AEB with Pedestrian Detection system. Failure to operate the vehicle in accordance with these system limitations could result in serious injury or death...

    System malfunction

    If the AEB with Pedestrian Detection system malfunctions, it will be turned off automatically, a chime will sound, the AEB with Pedestrian Detection system warning light (orange) will illuminate and the warning message [Malfunction] will appear in the vehicle information display...
