Nissan Murano. System operation

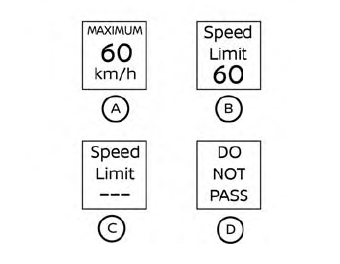

The Traffic Sign Recognition (TSR) system displays the following types of road signs:

Nissan Murano. System operation

Nissan Murano. System operation Speed sign detected (in Canada)

Nissan Murano. System operation Speed sign detected (in USA)

Nissan Murano. System operation Speed sign detected (no speed limit detected)

Nissan Murano. System operation “Do not pass” sign detected

CAUTION

  • The TSR system is intended as an aid to careful driving. It is the driver’s responsibility to stay alert, drive safely, and observe all road regulations that currently apply, including looking out for road signs.
  • The TSR system may not function properly under the following conditions:
  • When the road sign is not clearly visible, for example, due to damage or weather conditions.
    • When rain, snow or dirt adheres to the windshield in front of the multisensing camera unit.
    • When the headlights are not bright due to dirt on the lens or if the aiming is not adjusted properly.
    • When strong light enters the camera unit. (For example, the light directly shines on the front of the vehicle at sunrise or sunset.)
    • When a sudden change in brightness occurs. (For example, when the vehicle enters or exits a tunnel or under a bridge.)
    • In areas not covered by the navigation system.
    • If there are deviations in relation to the navigation, for example due to changes in the road routing.
    • When overtaking buses or trucks with speed stickers.
