Nissan Murano: Removal and Installation / Rear Reflex Reflector

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Exterior Lighting System :: Led Headlamp / Removal and Installation / Rear Reflex Reflector

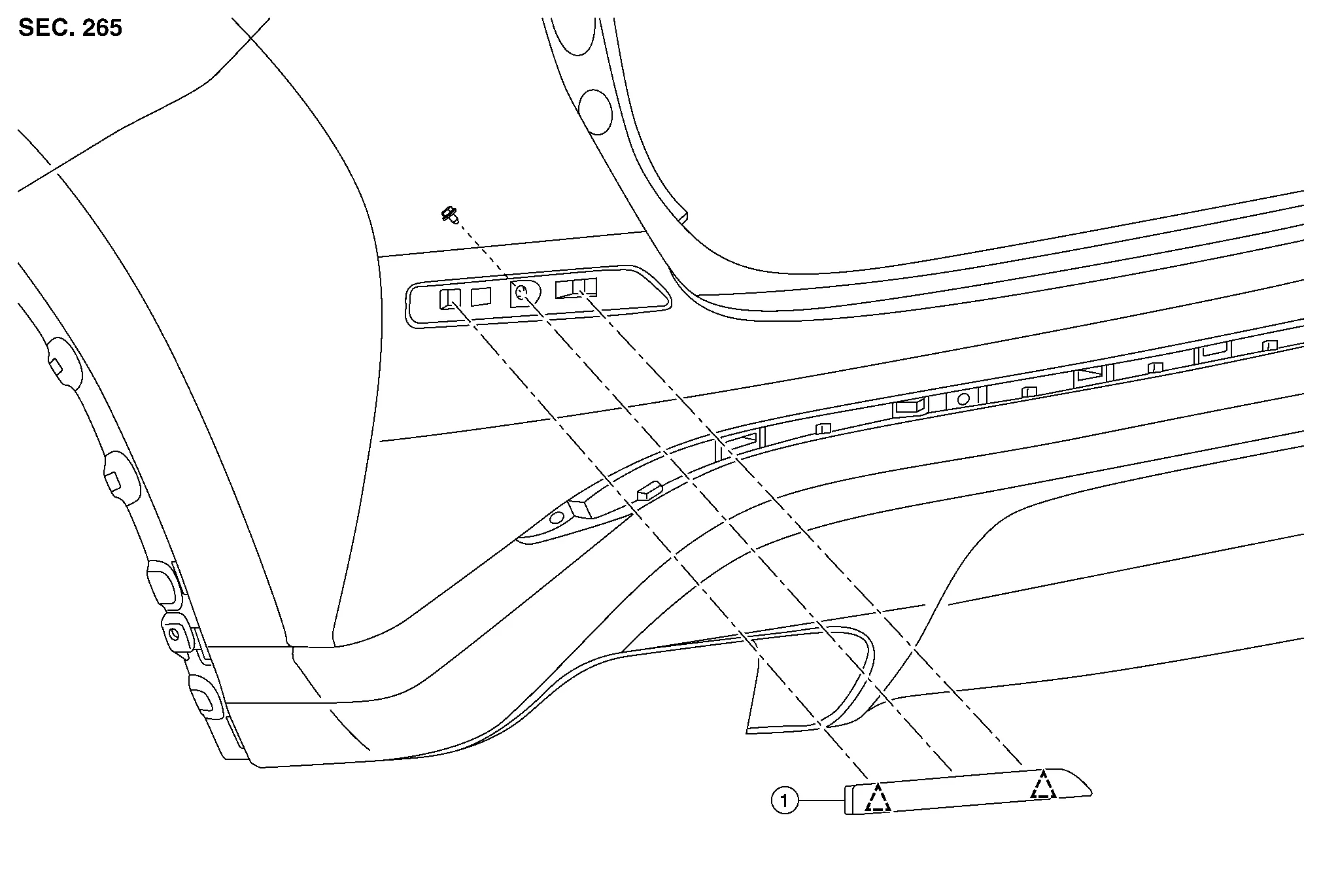

Exploded View

1. Rear reflex reflector Clip
Removal and Installation

REMOVAL

Remove rear bumper fascia. Refer to Removal and Installation.

Remove rear reflex reflector fixing screw and pawls and then remove rear reflex reflector.

INSTALLATION

Installation is in the reverse order of removal.

    Rear Combination Lamp (back Door Side)

    Exploded View 1. Rear combination lamp (back door side) A. Harness connector Metal stud Clip Removal and Installation REMOVALRemove back door lower finisher...

    Service Data and Specifications (sds). Service Data and Specifications (sds)

    Bulb Specifications Item Type Wattage (W) Front combination lamp High beam LED — Low beam — Turn signal lamp LED — Side marker lamp LED — Daytime running lamp LED — Front fog lamp LED — Door mirror turn signal lamp LED — Rear combination lamp (body side) Stop lamp LED — Side marker lamp LED — Turn signal lamp LED — Rear combination lamp (back door side) Back-up lamp LED — Tail lamp LED — License plate lamp W5W 5 High-mounted stop lamp LED — *: Always check with the Parts Department for the latest parts info...
