Nissan Murano: Driver Assistance System :: Driver Assistance System / Preparation. Preparation

Nissan Murano (Z52) 2015-2024 Service Manual / Cruise Control & Driver Assistance / Driver Assistance System :: Driver Assistance System / Preparation. Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description
— (J-46534) Trim Tool Set		Removing trim components

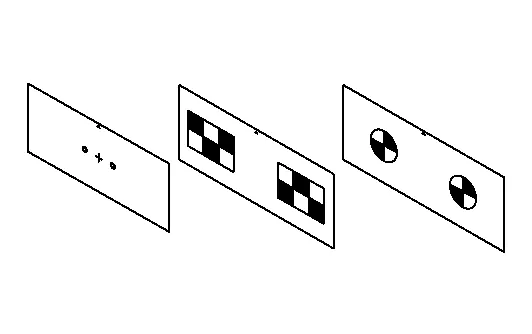

— (J-52266) Driver Assistance Targets		Adjusting front camera unit

Precaution. Precautions

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions...

System Description
