Nissan Murano: Dtc/circuit Diagnosis / P0715 Input Speed Sensor a
DTC DETECTION LOGIC
| DTC |
CONSULT screen terms (Trouble diagnosis content) |
DTC detection condition | |
| P0715 |
INPUT SPEED SENSOR A (Input/Turbine Speed Sensor “A” Circuit) |
Diagnosis condition |
When the following conditions are satisfied:
|
| Signal | — | ||
| Threshold |
When the following conditions are satisfied:
|
||
| Diagnosis delay time | 5 seconds | ||
POSSIBLE CAUSE
-
Harness or connector (Input speed sensor circuit is open or shorted)
-
Input speed sensor
FAIL-SAFE
-
Start is slow
-
Acceleration is slow
-
Lock-up is not performed
CAUTION:
Always drive vehicle at a safe speed.
PREPARATION BEFORE WORK
If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.
>>
GO TO 2.
CHECK DTC DETECTION
With CONSULT
-
Start the engine.
-
Drive the Nissan Murano vehicle.
-
Maintain the following conditions for 10 seconds or more.
Selector lever : “D” position Engine speed : 1,200 rpm or more Nissan Murano Vehicle speed : 40 km/h (25 MPH) or more -
Stop the vehicle.
-
Check the first trip DTC.
Is “P0715” detected?
YES>>Go to Diagnosis Procedure.
NO-1>>To check malfunction symptom before repair: Refer to Intermittent Incident.
NO-2>>Confirmation after repair: INSPECTION END
CHECK INPUT SPEED SENSOR POWER CIRCUIT
-
Turn ignition switch OFF.
-
Disconnect input speed sensor connector.
-
Turn ignition switch ON.
-
Check voltage between input speed sensor harness connector terminal and ground.
+ − Voltage Input speed sensor Connector Terminal F37 3 Ground 10 – 16 V
Is the inspection result normal?
YES>>GO TO 2.
NO>>GO TO 6.
CHECK INPUT SPEED SENSOR GROUND CIRCUIT
Check continuity between input speed sensor harness connector terminal and ground.
| Input speed sensor | — | Continuity | |
|---|---|---|---|
| Connector | Terminal | ||
| F37 | 1 | Ground | Existed |
Is the inspection result normal?
YES>>GO TO 3.
NO>>Repair or replace malfunctioning parts.
CHECK CIRCUIT BETWEEN INPUT SPEED SENSOR AND TCM (PART 1)
-
Turn ignition switch OFF.
-
Disconnect TCM connector.
-
Check continuity between input speed sensor harness connector terminal and TCM harness connector terminal.
Input speed sensor TCM Continuity Connector Terminal Connector Terminal F37 2 F25 24 Existed
Is the inspection result normal?
YES>>GO TO 4.
NO>>Repair or replace malfunctioning parts.
CHECK CIRCUIT BETWEEN INPUT SPEED SENSOR AND TCM (PART 2)
Check continuity between input speed sensor harness connector terminal and ground.
| Input speed sensor | — | Continuity | |
|---|---|---|---|
| Connector | Terminal | ||
| F37 | 2 | Ground | Not existed |
Is the inspection result normal?
YES>>GO TO 5.
NO>>Repair or replace malfunctioning parts.
CHECK TCM INPUT SIGNALS
-
Connect all of disconnected connectors.
-
Lift the Nissan Murano vehicle.
-
Start the engine.
-

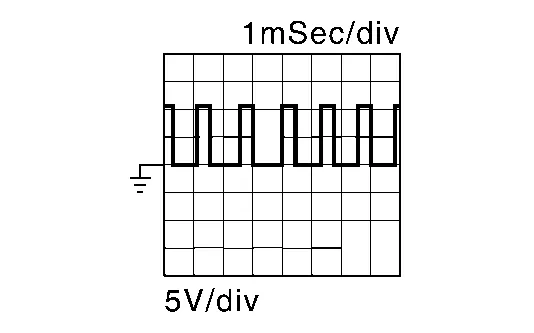

Check frequency of input speed sensor.
+ − Condition Frequency
(Approx.)TCM Connector Terminal F25 24 Ground -
Selector lever: “M1” position
-
Nissan Murano Vehicle speed: 20 km/h (12 MPH)
800 Hz
-
Is the inspection result normal?
YES>>Check intermittent incident. Refer to Intermittent Incident.
NO>>Replace input speed sensor. Refer to Removal and Installation.
DETECT MALFUNCTIONING ITEMS
Check the following items:
-
Harness open circuit or short circuit between ignition switch and IPDM E/R. Refer to Wiring Diagram.
-
Harness open circuit or short circuit between IPDM E/R connector terminal 61 and input speed sensor connector terminal 3.
-
10A fuse (No.43, located in the IPDM E/R). Refer to IPDM E/R Terminal Arrangement .
-
IPDM E/R
Is the check result normal?
YES>>Check intermittent incident. Refer to Intermittent Incident.
NO>>Repair or replace malfunctioning parts.
