System Description

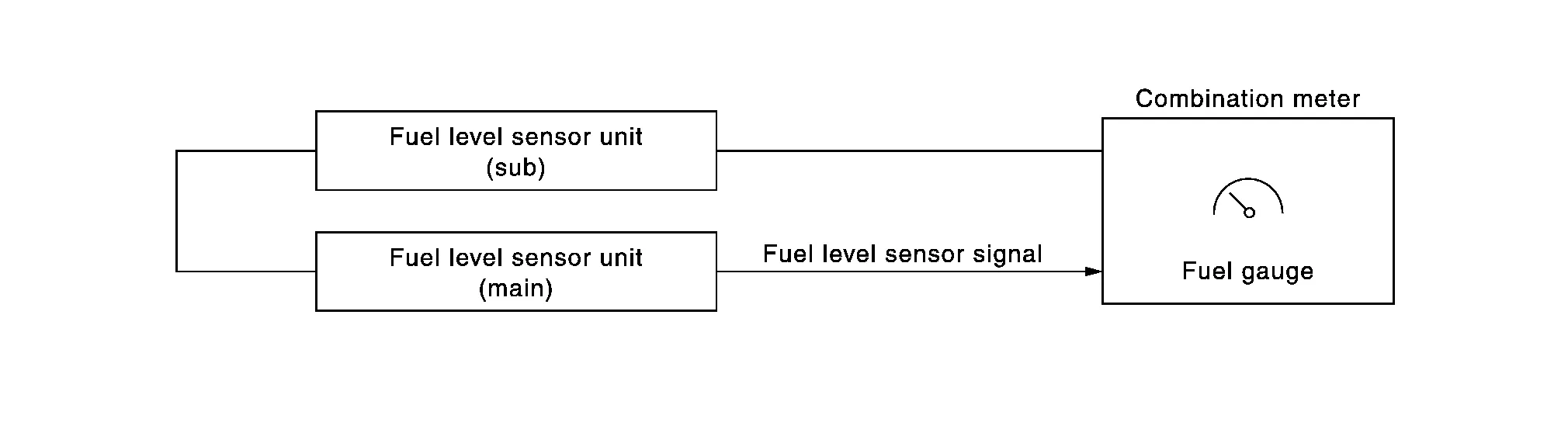

SYSTEM DIAGRAM

DESCRIPTION

The fuel level sensor unit sends a variable resistor signal to the combination meter. The fuel gauge indicates the approximate fuel level in the fuel tank.
