Nissan Murano: Srs Air Bag Control System :: System Description / Component Parts. Srs Air Bag Control System

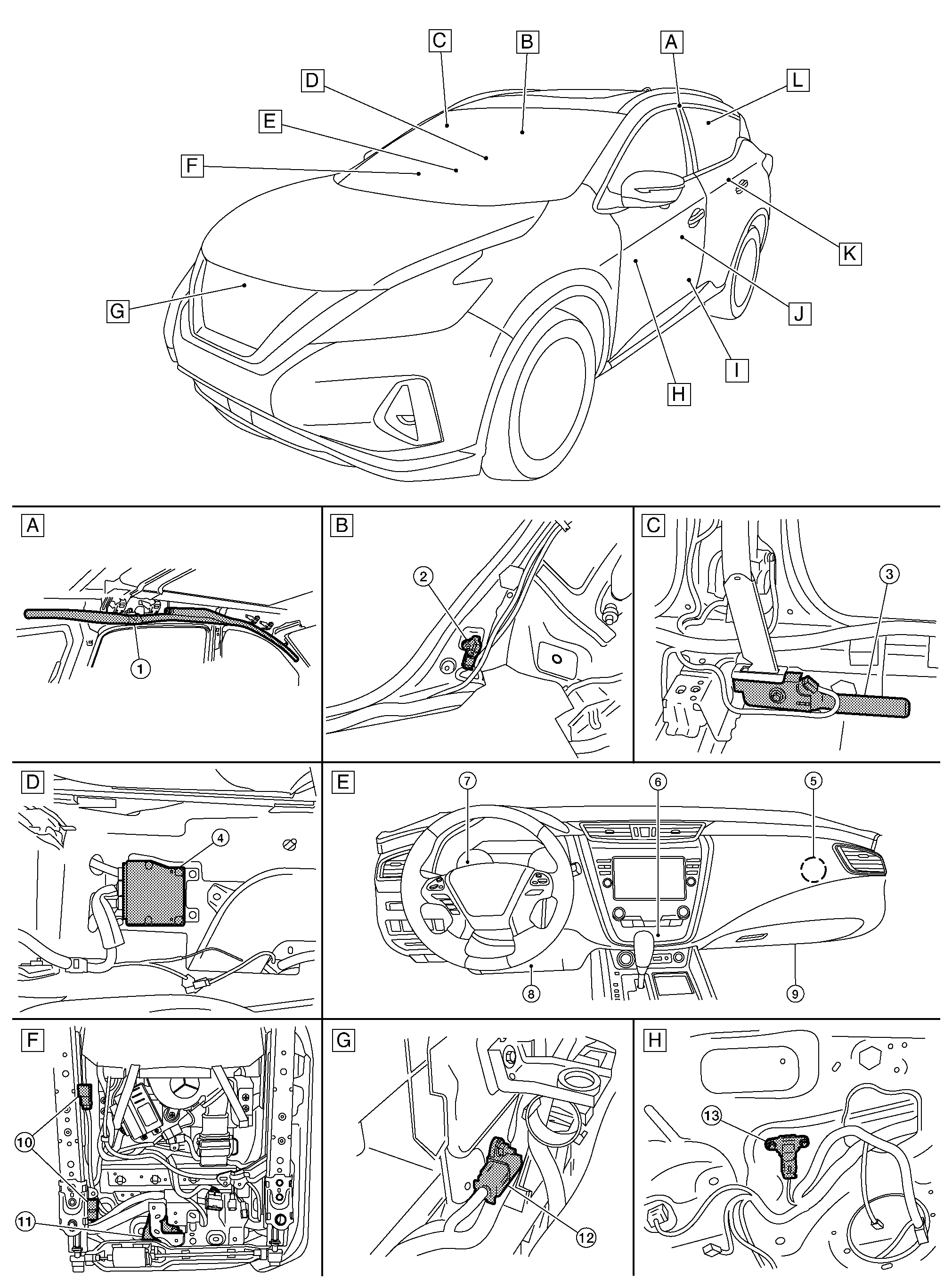

| A. |
Left side of roof line (view with headliner removed) |
B. |
Right of rear passenger seat (view with rear wheel house finisher removed) |
C. |
Base of passenger seat lap belt (view with center pillar garnish removed) |
| D. |
Between driver and passenger seat (View with center console removed) |
E. | Front of passenger compartment | F. |
Bottom of passenger seat (view with component removed from Nissan Murano vehicle) |
| G. |
Front of engine compartment (view with engine air intake plenum removed) |
H. |
Driver door area (view with front door finisher removed) |

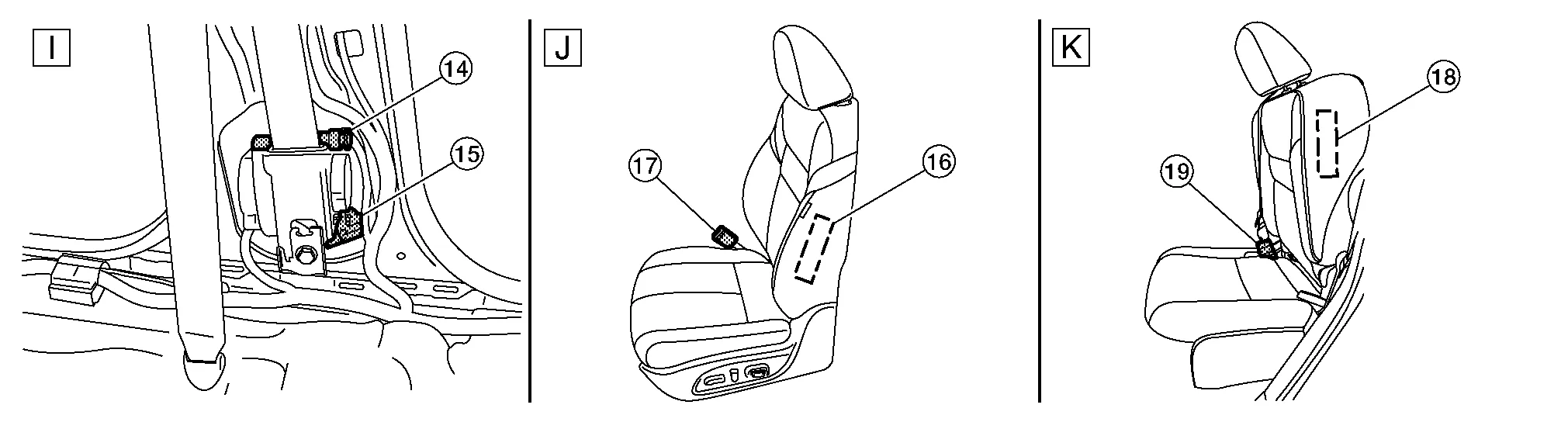

I. |
Driver seat area (view with center pillar lower finisher removed) |
| J. | Driver seat | K. | Rear seat (drivers side) | L. |

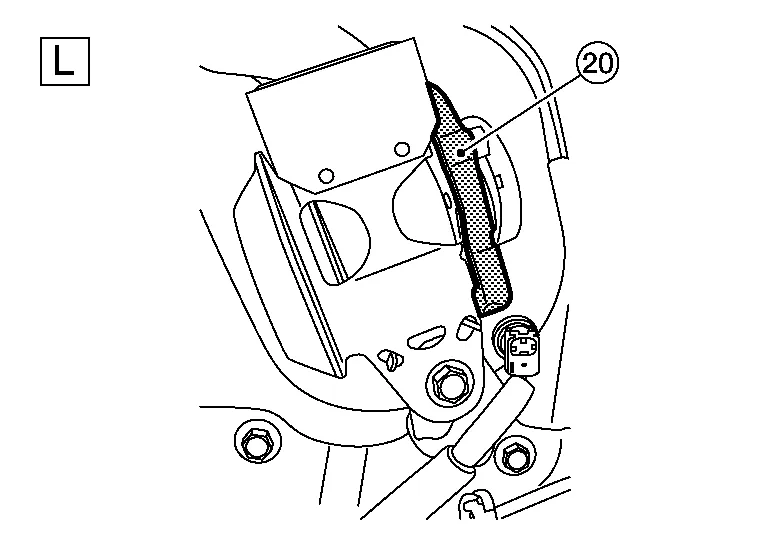

Behind rear LH seat (view with rear door finisher removed) |
| No. | Component | Function |
|---|---|---|
| 1. | LH side curtain air bag module (RH similar) | Refer to Side Curtain Air Bag Module. |
| 2. | Rear side air bag satellite sensor RH (LH similar) | Refer to Rear Side Air Bag Satellite Sensor. |
| 3. | Front RH seat belt pre-tensioner (lap belt) (LH similar) | Refer to Front Seat Belt Pre-tensioner. |
| 4. | Air bag diagnosis sensor unit | Refer to Air Bag Diagnosis Sensor Unit. |
| 5. | Front passenger air bag module | Refer to Front Passenger Air Bag Module. |
| 6. | Front passenger air bag OFF indicator | Refer to Front Passenger Air Bag Off Indicator. |
| 7. | Driver air bag module | Refer to Driver Air Bag Module. |
| 8. | Left knee air bag module | Refer to Left Knee Air Bag Module. |
| 9. | Right knee air bag module | Refer to Right Knee Air Bag Module. |
| 10. | Occupant classification system sensors | Refer to System Description. |
| 11. | Occupant classification system control unit | Refer to System Description. |
| 12. | Crash zone sensor | Refer to Crash Zone Sensor. |
| 13. | Front door satellite sensor LH (RH similar) | Refer to Front Door Satellite Sensor. |
| 14. | Front LH seat belt pre-tensioner (shoulder belt) (RH similar) | Refer to Front Seat Belt Pre-tensioner. |
| 15. | Front side air bag satellite sensor LH (RH similar) | Refer to Front Side Air Bag Satellite Sensor. |
| 16. | Side air bag module LH (RH similar) | Refer to Side Air Bag Module. |
| 17. | Front seat belt buckle switch LH (RH similar) | The front seat belt buckle switch LH provides the front seat belt buckle switch LH signal to the air bag diagnosis sensor unit and the combination meter. |
| 18. | Rear LH side air bag module (RH similar) | Refer to Rear Side Air Bag Module. |
| 19. | Rear seat belt buckle switch LH (RH & CTR similar) | The rear seat belt buckle switch LH provides the rear seat belt buckle switch LH signal to the air bag diagnosis sensor unit. |
| 20. | Rear LH seat belt pre-tensioner (shoulder belt) (RH similar) | Refer to Rear Seat Belt Pre-tensioner. |

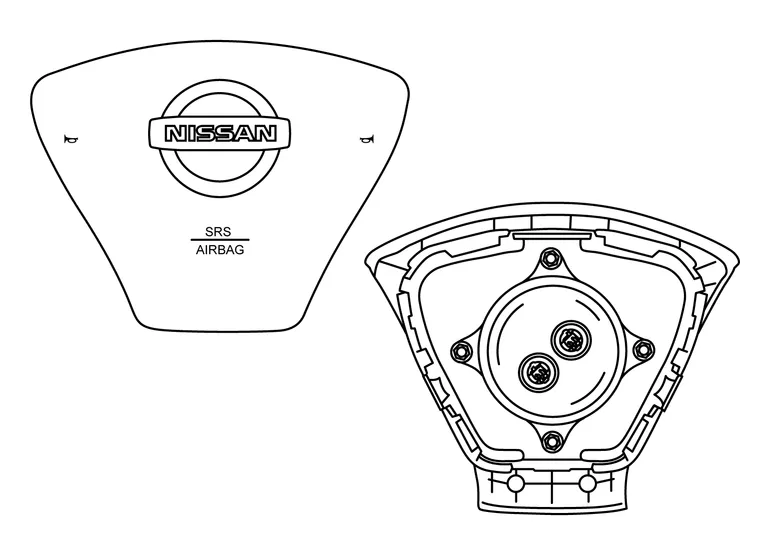

The driver air bag module is dual stage and located in the steering wheel assembly. It operates with the SRS system in a frontal collision exceeding a specified level.

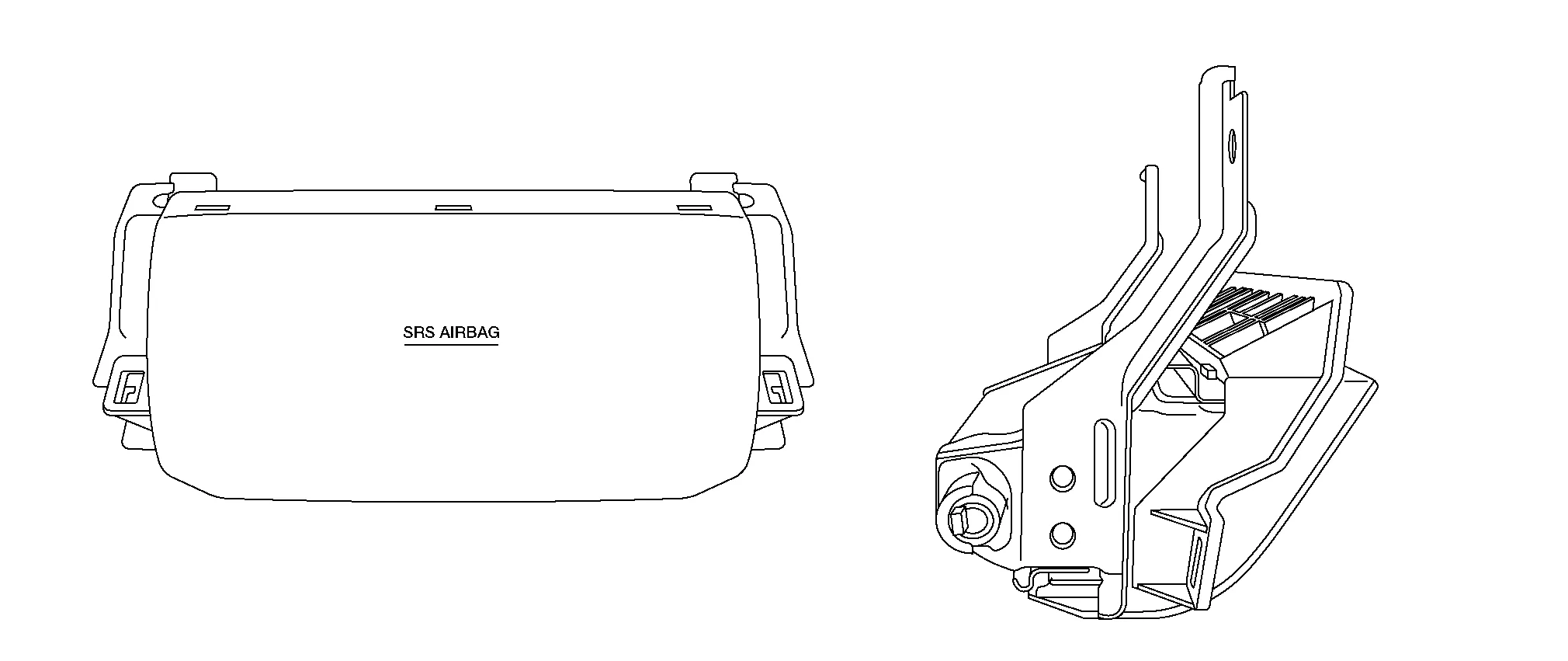

The front passenger air bag module is dual stage and is located behind the instrument panel assembly. It operates with the SRS system in a frontal collision exceeding a specified level. Refer to System Description for more information.
The left knee air bag module is single stage and located in the instrument panel assembly below the steering wheel. It operates with the SRS system in a frontal collision exceeding a specified level. Refer to System Description for more information.
The right knee air bag module is single stage and located in the instrument panel assembly below the glove box assembly. It operates with the SRS system in a frontal collision exceeding a specified level. Refer to System Description for more information.
Side air bag modules are built into the front seat back assemblies. Vehicles with side air bags are equipped with labels as shown.

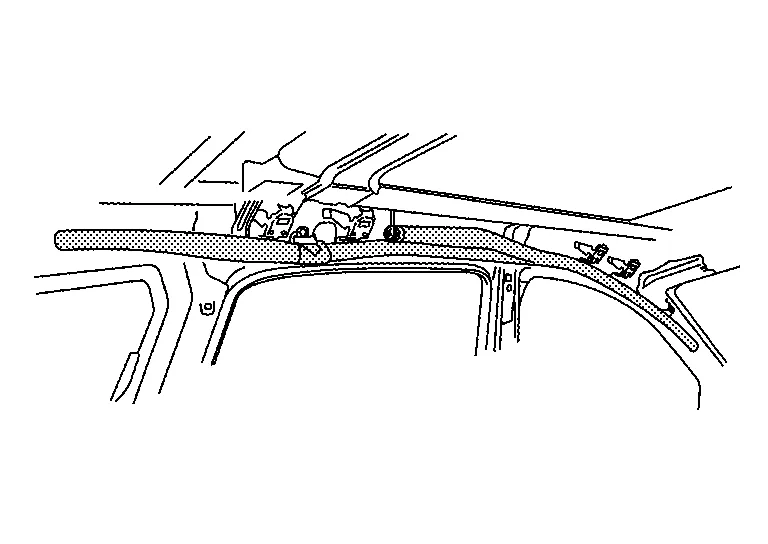

Side curtain air bag modules are located above the vehicle headliner.
Vehicles with side curtain air bags are equipped with labels on the pillar upper finishers.
The seat belt pre-tensioner system with load limiter is installed for both the driver seat and the front passenger seat. It operates simultaneously with the SRS air bag system in the event of a frontal collision with an impact exceeding a specified level.

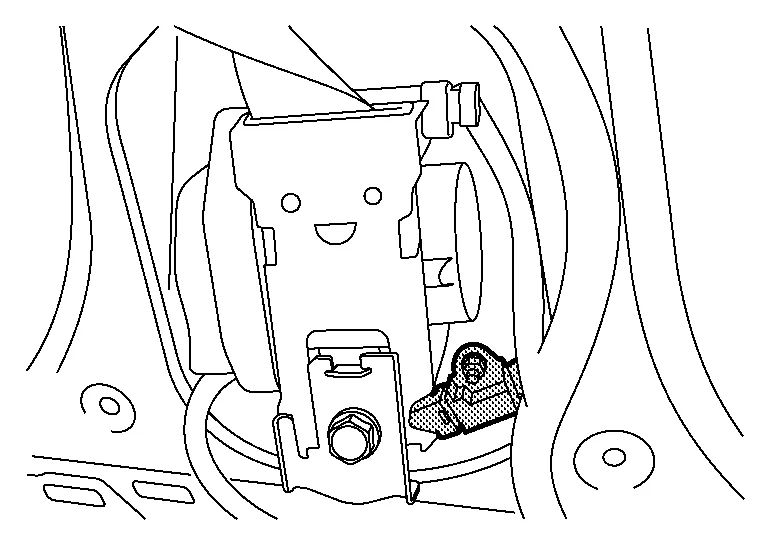

When a frontal collision with an impact exceeding a specified level occurs, seat belt slack resulting from clothing or other factors is immediately taken up by the shoulder belt pre-tensioner (1) as well as the passenger seat lap belt pre-tensioner (2). Nissan Murano Vehicle passengers are securely restrained.
When passengers in a vehicle are thrown forward in a collision and the restraining force of the seat belt exceeds a specified level, the load limiter permits the specified extension of the seat belt by the twisting of the ELR shaft and a relaxation of the chest-area seat belt web tension while maintaining force.

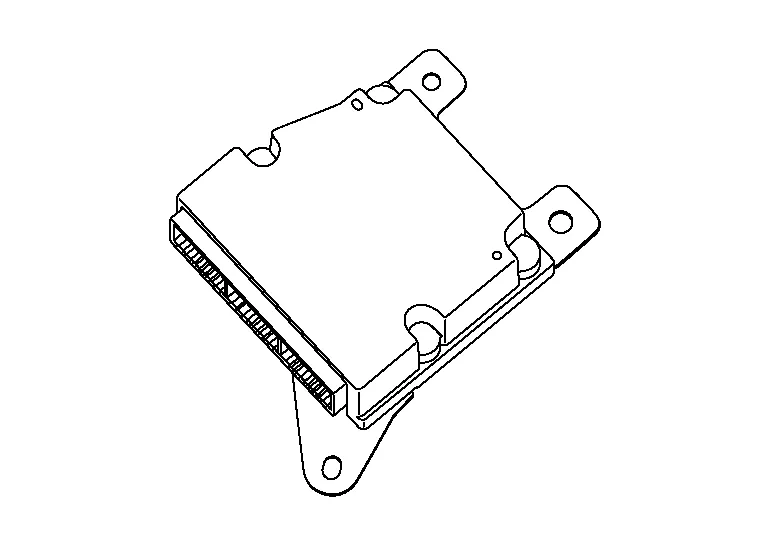

The air bag diagnosis sensor unit is located under the center console assembly. The air bag diagnosis sensor unit receives signals from multiple SRS sensors and controls the deployment of the air bags. The deployment of the air bags depends on the type and severity of the collision. The air bag diagnosis sensor unit has self-diagnosis capability through the use of the CONSULT as well as flash codes displayed by the air bag warning lamp.
The crash zone sensor is located behind the radiator and underneath the front air duct. The crash zone sensor sends signals to the air bag diagnosis sensor unit during a frontal collision. This sensor may be identified by a yellow connector.

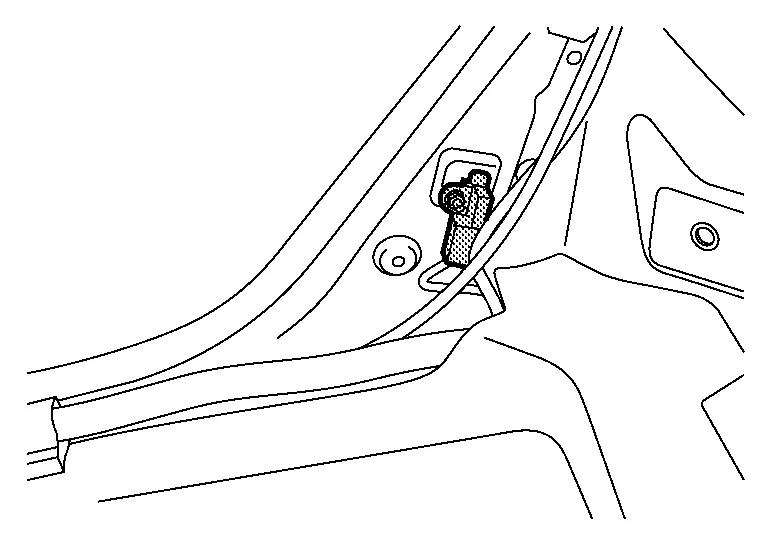

The front side air bag satellite sensors are located on the front center pillar LH and RH next to the seat belt pre-tensioners. The front side air bag satellite sensors send signals to the air bag diagnosis sensor unit during a side collision. These sensors may be identified by yellow connectors.
The rear side air bag satellite sensors are located behind the rear wheel house finisher LH and RH. The rear side air bag satellite sensors send signals to the air bag diagnosis sensor unit during a side collision. These sensors may be identified by yellow connectors.

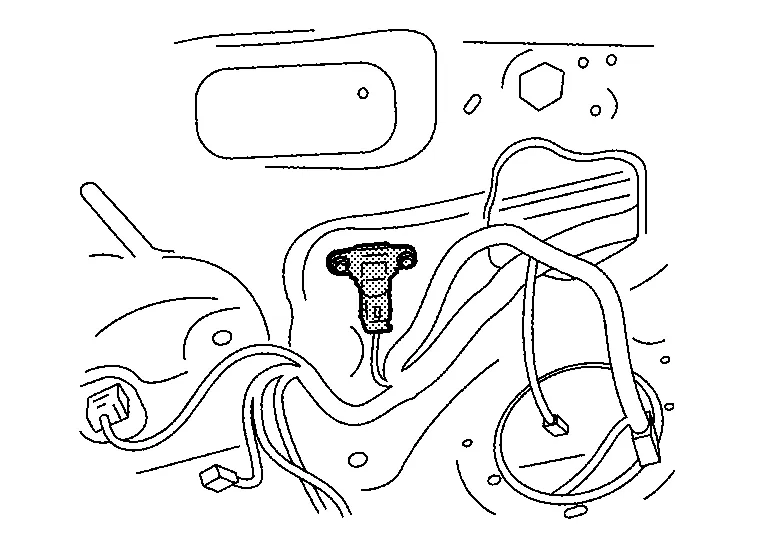

The front door satellite sensors are located in the driver and passenger doors. The front door satellite sensors send signals to the air bag diagnosis sensor unit during a side collision. These sensors may be identified by yellow connectors.
Front passenger air bag OFF indicator indicates whether or not passenger air bag is in the activation mode based on the judgment of occupant detection system.
The seat belt pre-tensioner system with load limiter is installed for both the LH rear seat and the RH rear seat. It operates simultaneously with the SRS air bag system in the event of a frontal collision with an impact exceeding a specified level.

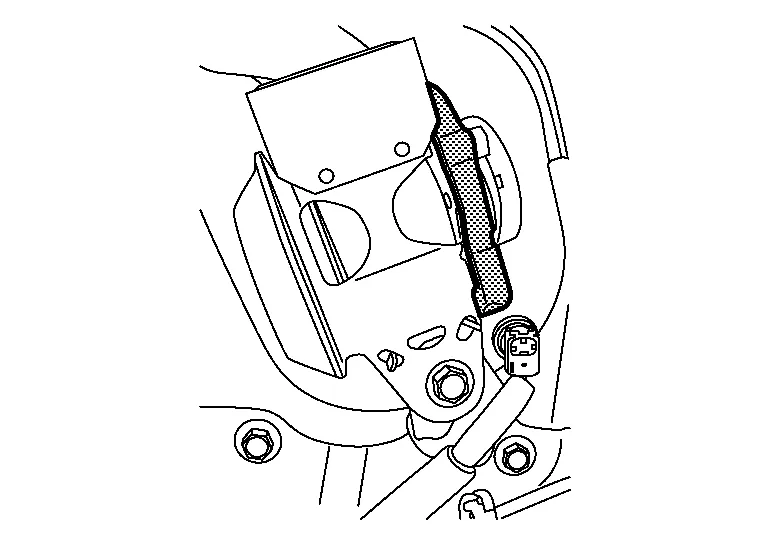

When a frontal collision with an impact exceeding a specified level occurs, seat belt slack resulting from clothing or other factors is immediately taken up by the shoulder belt pre-tensioner. When passengers in a Nissan Murano vehicle are thrown forward in a collision and the restraining force of the seat belt exceeds a specified level, the load limiter permits the specified extension of the seat belt by the twisting of the ELR shaft and a relaxation of the chest-area seat belt web tension while maintaining force.

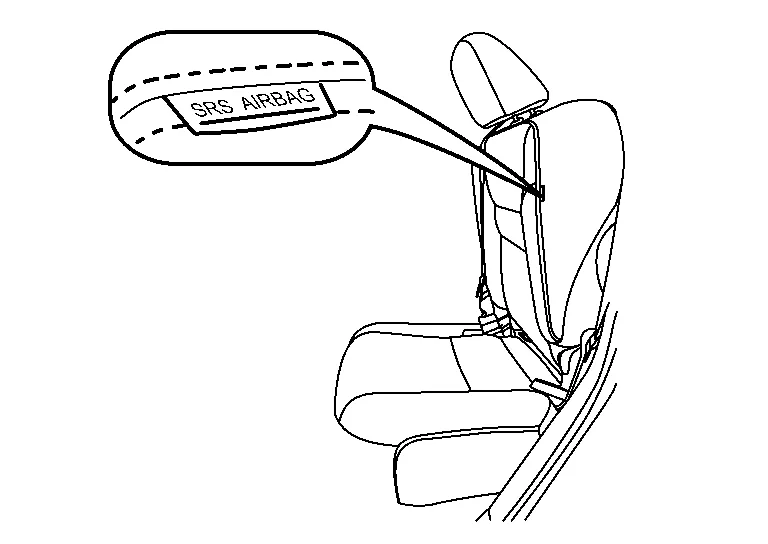

Rear side air bag modules are built into the rear seat back assemblies. Vehicles with rear side air bags are equipped with labels as shown.
