Nissan Murano: System / Meter Illumination Control
System Description

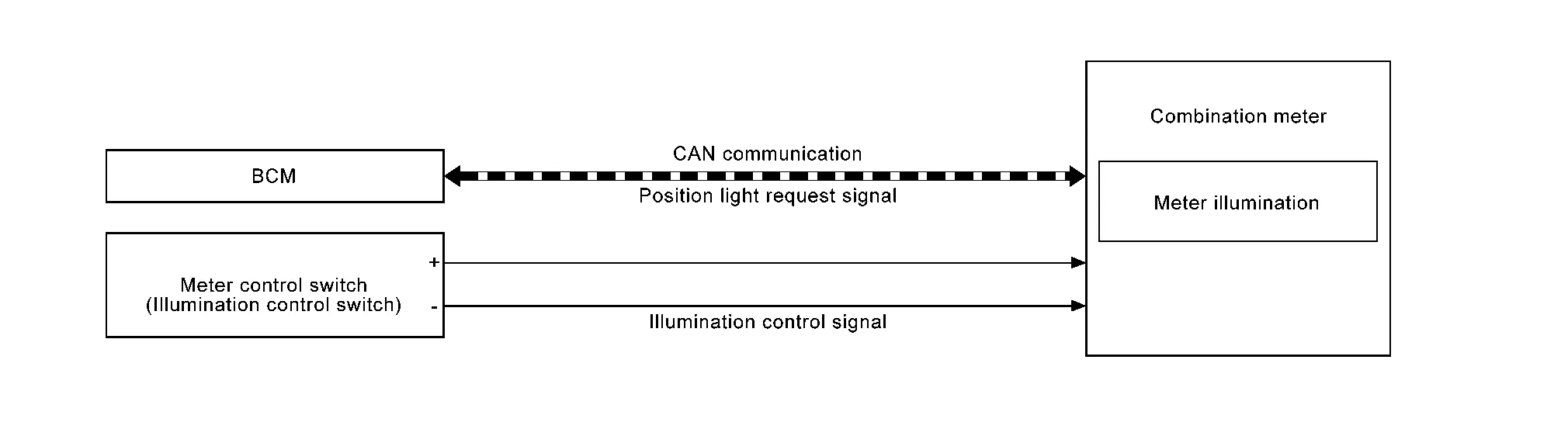

SYSTEM DIAGRAM

DESCRIPTION
Meter Illumination Control Function
The operation of the illumination control switch changes brightness of the meter illumination.
| Meter illumination | The number of adjustable steps |
| Daytime |
21 |
| Nighttime |
21 |
