Nissan Murano: Fuel Filler Lid Opener / Fuel Filler Lid Release Handle

Fuel Filler Lid Release Cable

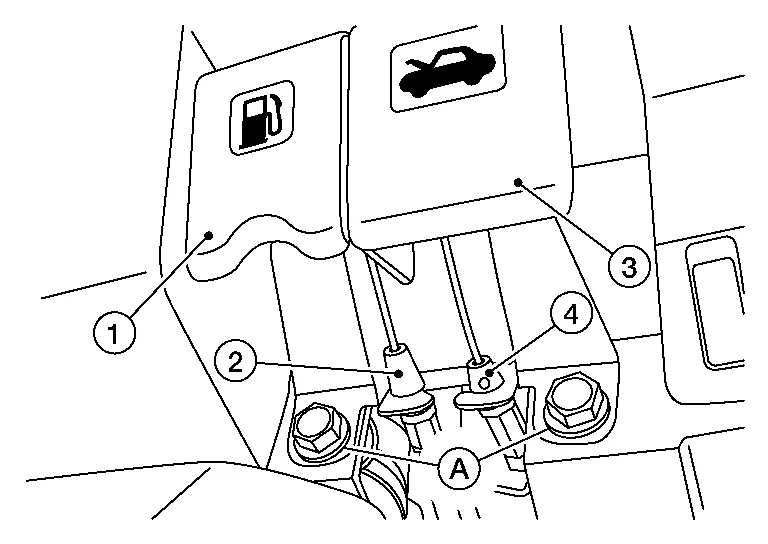

Removal and Installation REMOVALRemove fuel filler lid/hood lock release handle bolts (A). Disconnect the fuel filler lid release cable (2) from the fuel filler lid release handle (1)...

Door Switch

Removal and Installation REMOVALRemove door switch bolt (A). Disconnect the harness connector from the door switch (1) and remove.INSTALLATIONInstallation is in the reverse order of removal...
