Nissan Murano: Door & Lock :: Removal and Installation / Door Switch

Nissan Murano (Z52) 2015-2024 Service Manual / Body Exterior, Doors, Roof & Vehicle Security / Door & Lock :: Removal and Installation / Door Switch

Removal and Installation

REMOVAL

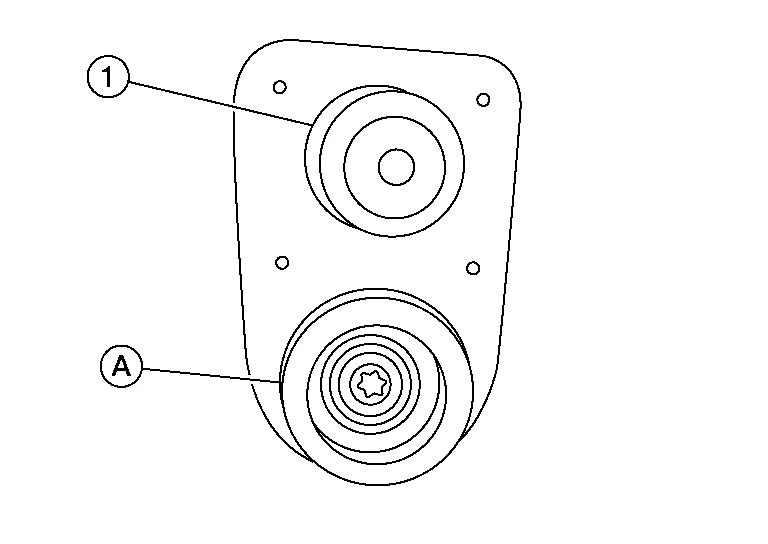

Remove door switch bolt (A).

Disconnect the harness connector from the door switch (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.
