Nissan Murano: Wiper & Washer :: Removal and Installation / Front Wiper Drive Assembly

Nissan Murano (Z52) 2015-2024 Service Manual / Driver Controls / Wiper & Washer :: Removal and Installation / Front Wiper Drive Assembly

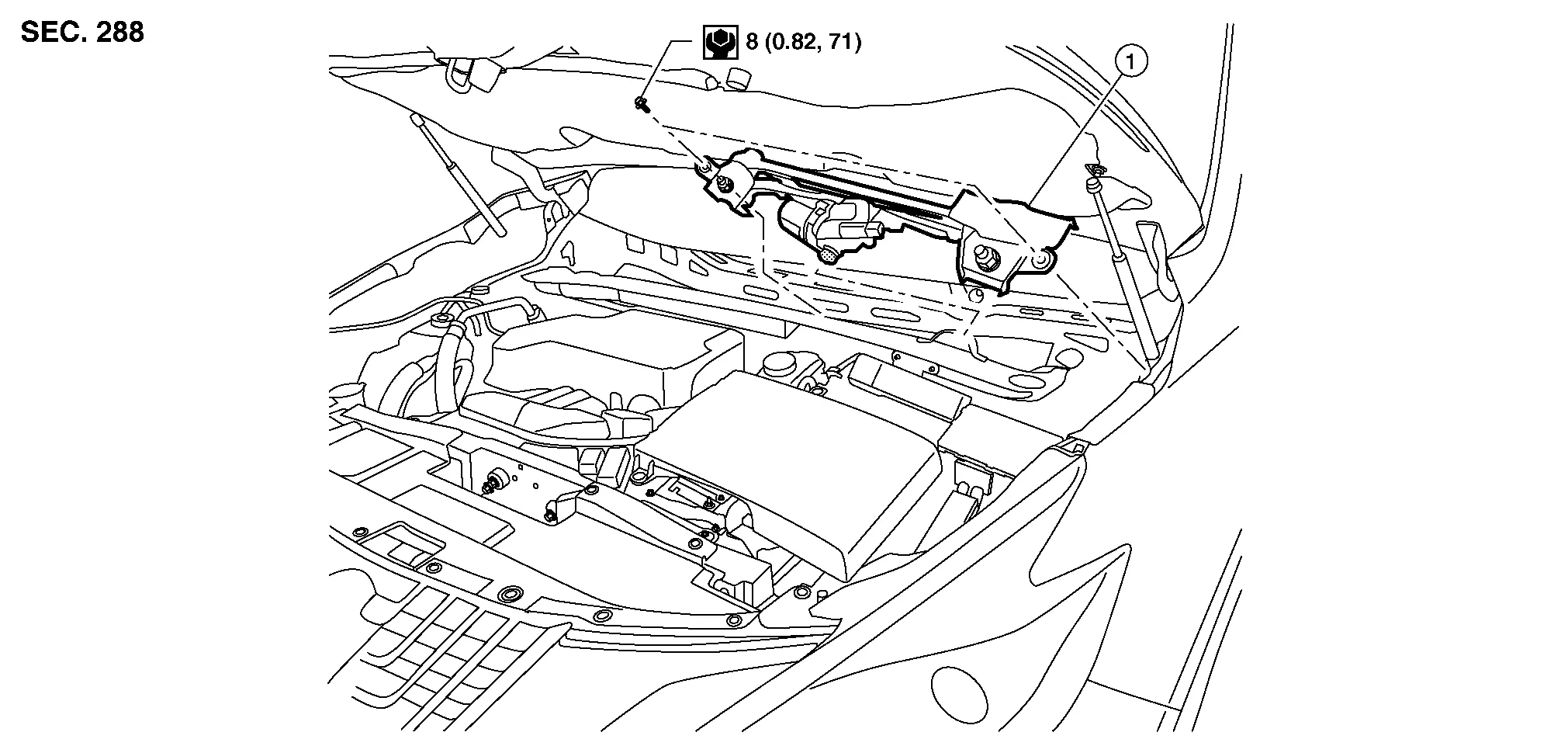

Exploded View

1. Front wiper drive assembly
Removal and Installation

REMOVAL

Remove the cowl top cover. Refer to Removal and Installation — Cowl Top Cover.

Disconnect the harness connector from the front wiper motor.

Remove the bolts from the front wiper drive assembly.

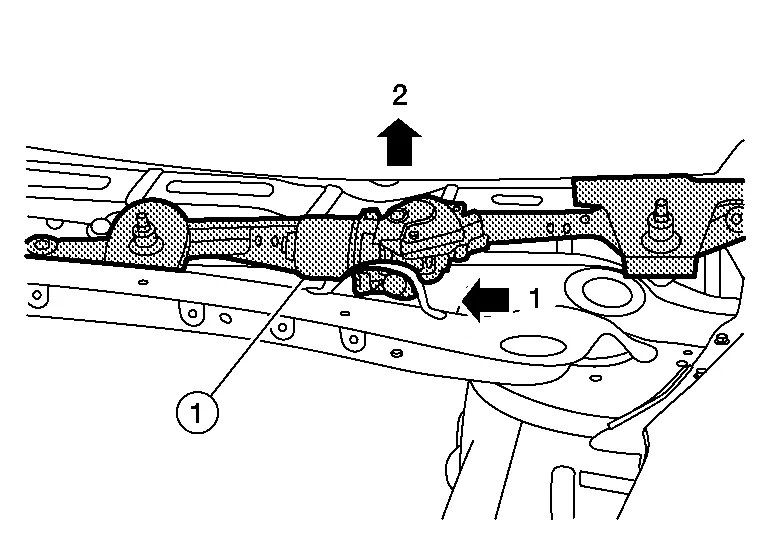

Remove the front wiper drive assembly (1) in the sequence shown.

INSTALLATION

Installation is in the reverse order of removal.
