Nissan Murano: Front Washer Nozzle and Tube / Front Washer Nozzle
REMOVAL

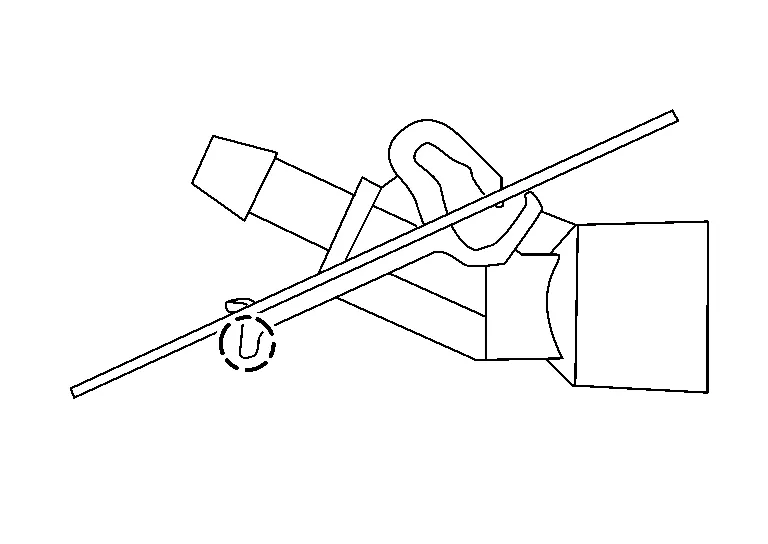

Release the pawl and remove the front washer nozzle from the hood.
: Pawl
Disconnect the front washer tube from the front washer nozzle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Adjust the front nozzles to their proper position. Refer to Adjustment.

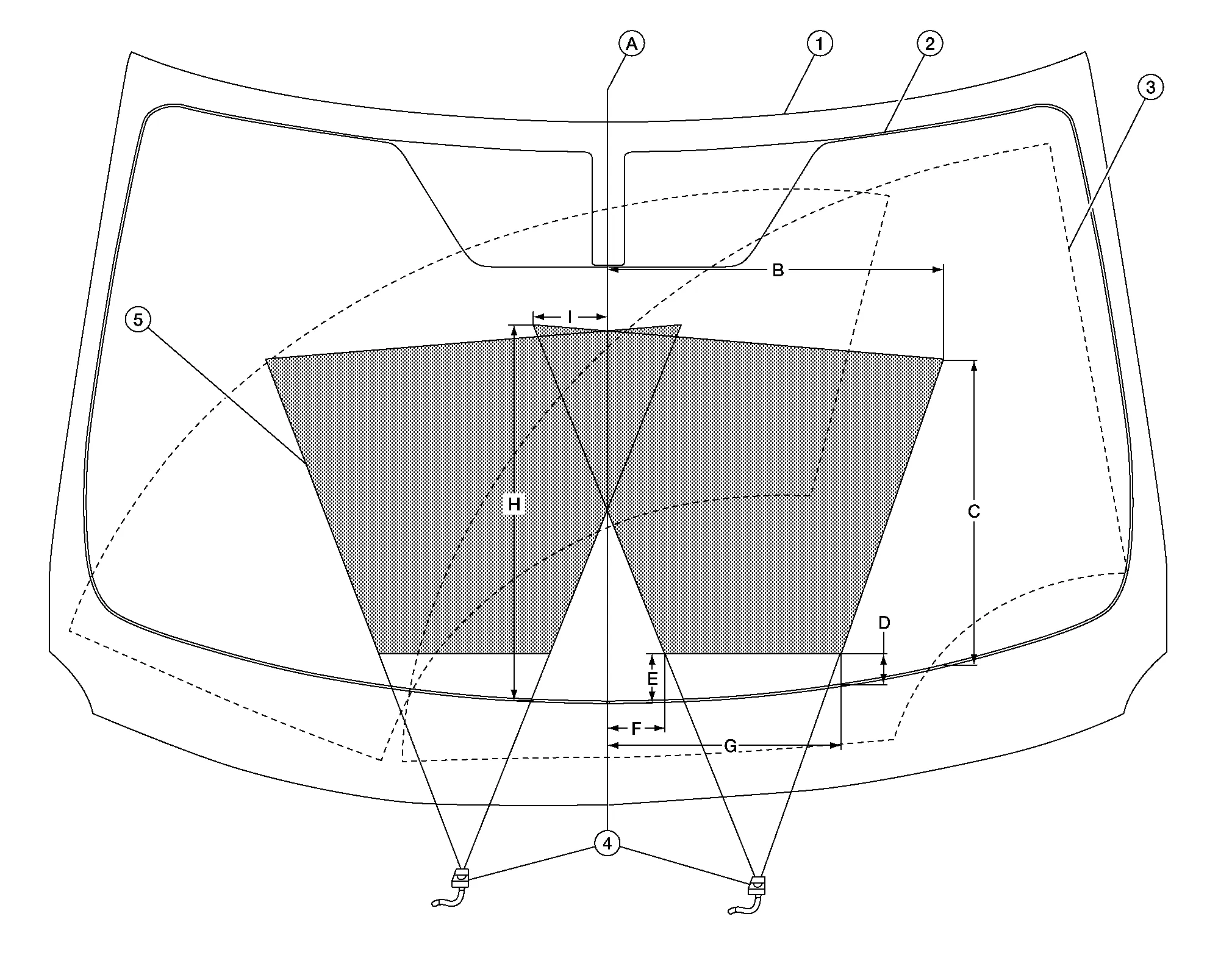

| 1. | Windshield glass | 2. | Black printed area line | 3. | Wiping area |
| 4. | Front washer nozzle (RH/LH) | 5. | Washer fluid spray pattern | A. | Center line |
| B. | 449.1 mm (17.68 in) | C. | 456.7 mm (17.98 in) | D. | 53.6 mm (2.11 in) |
| E. | 74.4 mm (2.93 in) | F. | 77.1 mm (3.04 in) | G. | 303.1 mm (11.93 in) |
| H. | 560.7 mm (22.07 in) | I. | 96.3 mm (3.79 in) |
NOTE:
Spray positions for LH shown; RH is symmetrical.

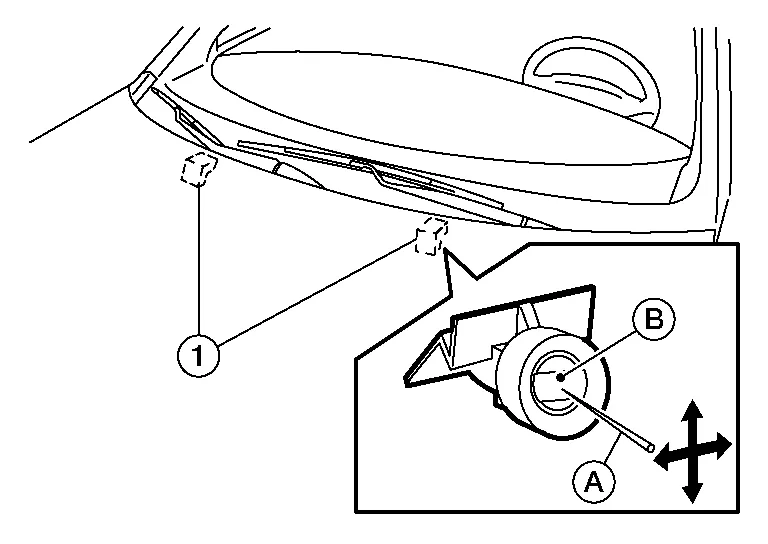

Insert a suitable tool (A) into the front washer nozzle hole (B) and move up/down and left/right to adjust the spray position of each nozzle (1).
Front Washer Tube
Removal and Installation
REMOVALRemove the hood insulator. Refer to Exploded View.
Remove the hoodledge cover (RH). Refer to Removal and Installation.
Disconnect the front washer tube from the front washer nozzle...
