Nissan Murano: Seat Belt :: Removal and Installation / Front Seat Belt

Nissan Murano (Z52) 2015-2024 Service Manual / Restraints / Seat Belt :: Removal and Installation / Front Seat Belt

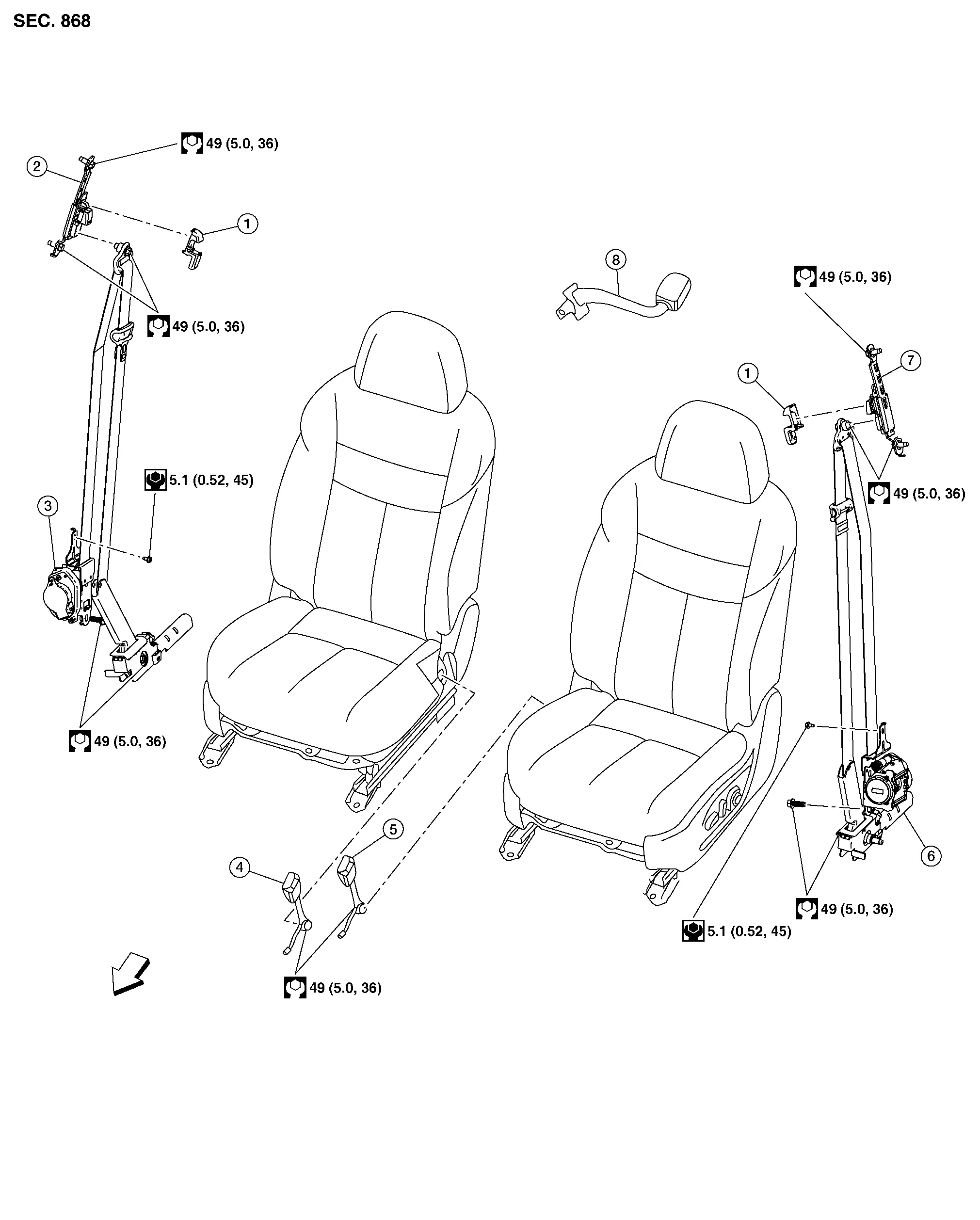

Exploded View

1.	Seat belt height adjuster bolt cover	2.	Seat belt height adjuster (RH)	3.	Seat belt retractor (RH)
4.	Seat belt buckle (RH)	5.	Seat belt buckle (LH)	6.	Seat belt retractor (LH)
7.	Seat belt height adjuster (LH)	8.	Seat belt extender		Front

Seat Belt :: Removal and Installation

Seat Belt Retractor

Removal and Installation WARNING: Before servicing the SRS, turn the ignition switch OFF, disconnect both battery terminals then wait at least three minutes...
