Nissan Murano: Front Seat Belt / Front Seat Belt Buckle
REMOVAL
Remove front seat. Refer to Removal and Installation.
Disconnect seat belt buckle harness connector.
Remove seat belt buckle anchor bolt and seat belt buckle.
CAUTION:
Before removing the seat belt buckle anchor bolt, note the positions of washers and spacers for correct installation.
INSTALLATION
Installation is in the reverse order of removal.
-

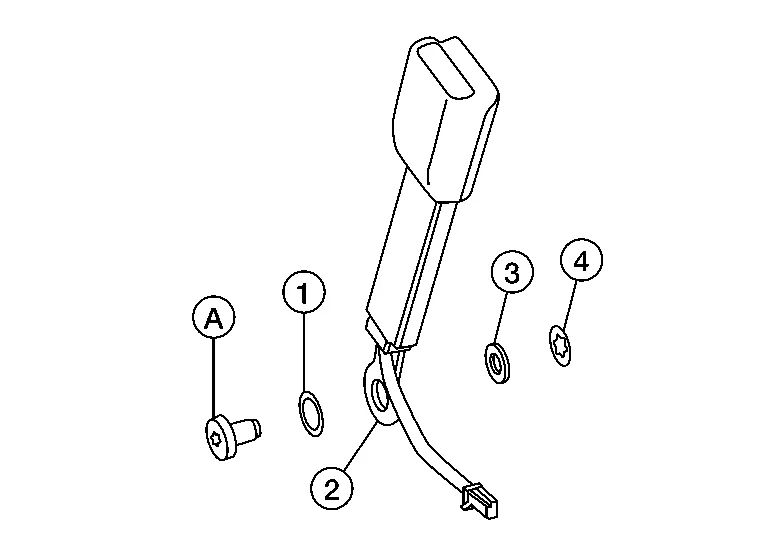

During installation, make sure seat belt buckle anchor bolt (A) is inserted through the components in the following order:
1. Wave washer 2. Seat belt buckle 3. Spacer 4. Star washer
CAUTION:
-
Tighten seat belt buckle anchor bolt to specification.
-
Always perform an inspection after repair to make sure system is functioning within specifications. Refer to Inspection.
Seat Belt Height Adjuster
Removal and Installation
REMOVALRemove center pillar upper finisher. Refer to Removal and Installation.
Remove seat belt height adjuster bolts (A) and seat belt height adjuster (1)...
