Nissan Murano: Front Seat Belt / Seat Belt Retractor

Removal and Installation

WARNING:

• Before servicing the SRS, turn the ignition switch OFF, disconnect both battery terminals then wait at least three minutes.

• Do not drop the seat belt retractor. Always handle it with care.

• Always point pre-tensioner cylinder away from body when handling.

REMOVAL

Remove front seat. Refer to Removal and Installation.

Remove center pillar lower finisher. Refer to Removal and Installation.

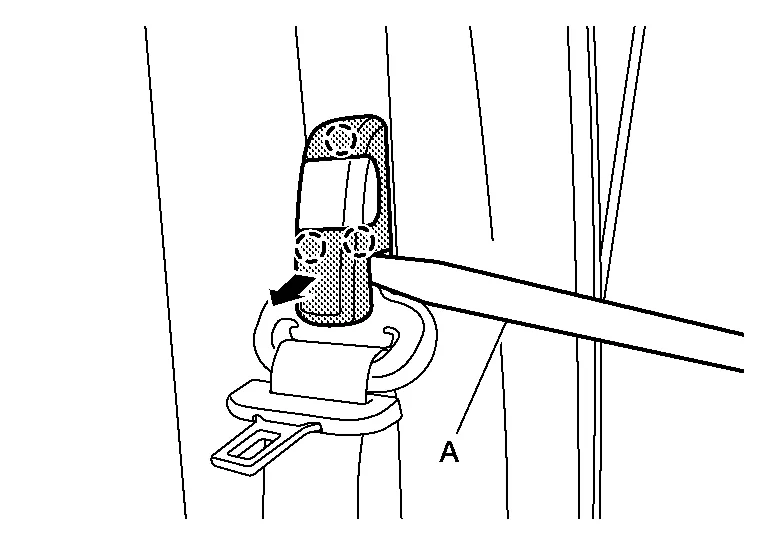

Release pawls, using a suitable tool (A) and remove seat belt height adjuster bolt cover.

: Pawl

Remove D-ring anchor bolt.

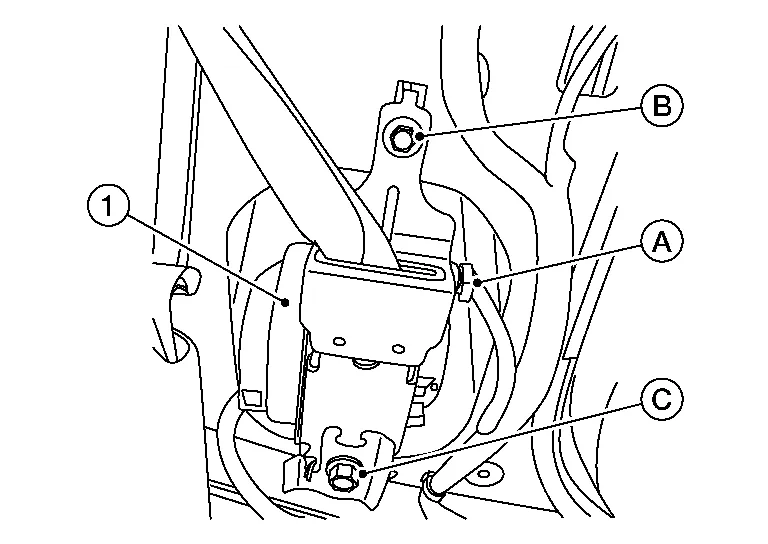

Disconnect harness connector (A) from seat belt pre-tensioner (1) then remove pre-tensioner bolts (B) and (C).

NOTE:

RH side shown, LH side similar.

CAUTION:

• For removing/installing the shoulder belt pre-tensioner harness connector, insert a thin screwdriver wrapped in tape into the notch, then lift the lock and remove the harness connector as shown.



• Install the harness connector with the lock raised, and push the lock into the harness connector as shown.

• After installing the harness connector, check that the lock is pushed in securely.

Position floor trim aside and remove harness connector cover.

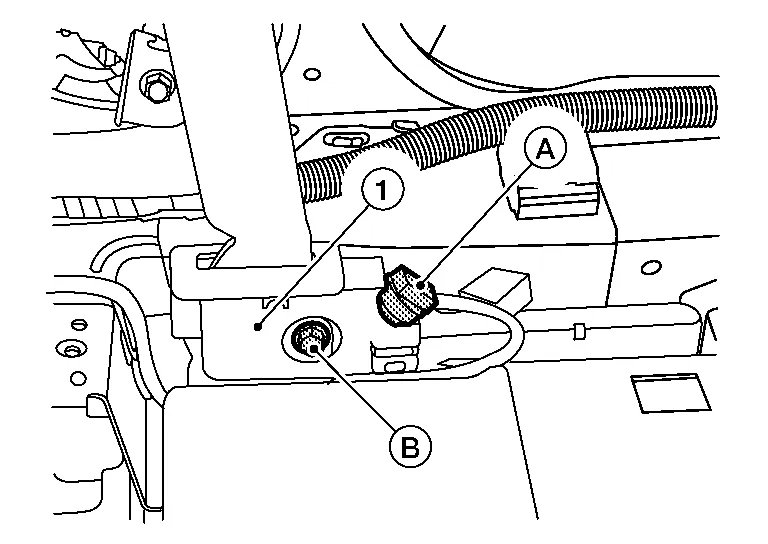

Disconnect harness connector (A) from lap belt pre-tensioner (1) then remove bolt (B) and seat belt retractor.

NOTE:

RH side shown, LH side similar.

CAUTION:

• For removing/installing lap belt pre-tensioner harness connector, insert a thin screwdriver wrapped in tape into the notch then lift the lock and remove harness connector as shown.



• Install harness connector with the lock raised and push the lock into harness connector as shown.

• After installing harness connector, check that the lock is pushed in securely.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten D-ring anchor bolt and seat belt retractor bolts to specification. Refer to Exploded View.

• Tighten lap belt pre-tensioner bolts to specification. Refer to Exploded View.

• Make sure seat belt height adjuster is locked in lowest position and is aligned with center pillar upper finisher opening during installation.

• Make sure both the D-ring anchor and seat belt height adjuster operate freely.

• Always perform an inspection after repair to make sure system is functioning within specifications. Refer to Inspection.
